CohortConstructor

Build and Curate Study Cohorts in R Using the OMOP Common Data Model

Motivation

A cohort is a group of individuals that satisfy some inclusion criteria within a defined time period (inclusion criteria + time).

It is the key and principal piece used in epidemiological studies. In the OMOP CDM we define a cohort a table with 4 columns:

  • cohort_definition_id: Unique identifier for each cohort in the table.

  • subject_id: Unique patient identifier.

  • cohort_start_date: Date when the person enters the cohort.

  • cohort_end_date: Date when the person exits the cohort.

Motivation: Build in a tidy way

  • omopgenerics and CDMConnector define an ecosystem of R packages that allow us to interact with an OMOP CDM instance using packages such as dplyr and tidyr.
library(omock)
cdm <- mockCdmFromDataset(datasetName = "GiBleed", source = "duckdb")
cdm$person
# Source:   table<person> [?? x 18]
# Database: DuckDB 1.5.0 [unknown@Linux 6.17.0-1008-azure:R 4.5.3//tmp/Rtmp57NUvA/file16751494f26c.duckdb]
   person_id gender_concept_id year_of_birth month_of_birth day_of_birth birth_datetime      race_concept_id
       <int>             <int>         <int>          <int>        <int> <dttm>                        <int>
 1         6              8532          1963             12           31 1963-12-31 00:00:00            8516
 2       123              8507          1950              4           12 1950-04-12 00:00:00            8527
 3       129              8507          1974             10            7 1974-10-07 00:00:00            8527
 4        16              8532          1971             10           13 1971-10-13 00:00:00            8527
 5        65              8532          1967              3           31 1967-03-31 00:00:00            8516
 6        74              8532          1972              1            5 1972-01-05 00:00:00            8527
 7        42              8532          1909             11            2 1909-11-02 00:00:00            8527
 8       187              8507          1945              7           23 1945-07-23 00:00:00            8527
 9        18              8532          1965             11           17 1965-11-17 00:00:00            8527
10       111              8532          1975              5            2 1975-05-02 00:00:00            8527
# ℹ more rows
# ℹ 11 more variables: ethnicity_concept_id <int>, location_id <int>, provider_id <int>, care_site_id <int>,
#   person_source_value <chr>, gender_source_value <chr>, gender_source_concept_id <int>, race_source_value <chr>,
#   race_source_concept_id <int>, ethnicity_source_value <chr>, ethnicity_source_concept_id <int>

Motivation: Build in a tidy way

library(dplyr)
cdm$person |>
  select(person_id, sex = gender_concept_id) |>
  left_join(
    cdm$observation_period |>
      select(person_id, obs_start = observation_period_start_date),
    by = "person_id"
  ) |>
  glimpse()
Rows: ??
Columns: 3
Database: DuckDB 1.5.0 [unknown@Linux 6.17.0-1008-azure:R 4.5.3//tmp/Rtmp57NUvA/file16751494f26c.duckdb]
$ person_id <int> 6, 16, 42, 18, 35, 40, 53, 9, 2, 49, 11, 61, 32, 43, 12, 7, 17, 41, 63, 19, 5, 30, 3, 36, 57, 1, 23,…
$ sex       <int> 8532, 8532, 8532, 8532, 8532, 8507, 8507, 8532, 8532, 8507, 8507, 8532, 8507, 8532, 8532, 8532, 8532…
$ obs_start <date> 1963-12-31, 1971-10-14, 1909-11-03, 1965-11-17, 1960-03-22, 1951-12-05, 1962-08-15, 1978-07-20, 192…

For more details on this approach please refer to the following book:

Burn, E., & Català, M. (2025). Tidy R programming with the OMOP Common Data Model (first edition). Zenodo. https://doi.org/10.5281/zenodo.17532124. Online version

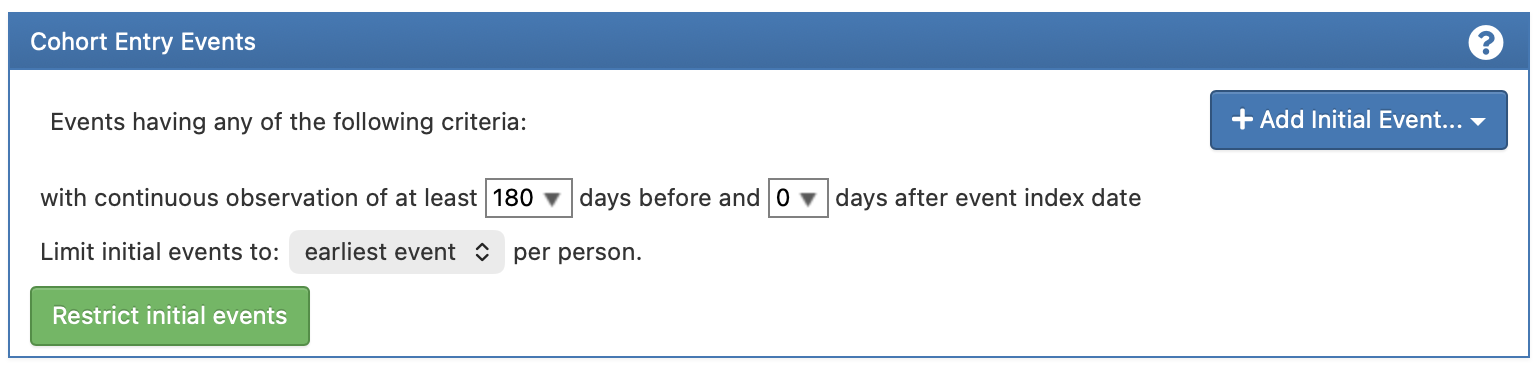

Motivation: order of operations (ATLAS)

ATLAS is a user friendly interface used to build cohorts (https://atlas-demo.ohdsi.org):

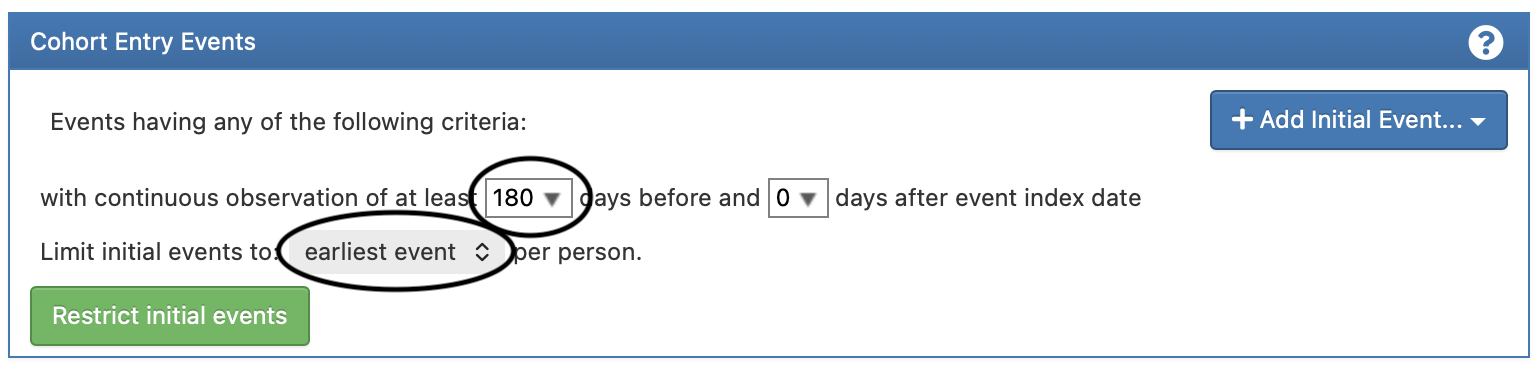

Motivation: order of operations (ATLAS)

ATLAS is a user friendly interface used to build cohorts (https://atlas-demo.ohdsi.org):

Motivation: order of operations

cdm$my_cohort |>
  # require 180 days of prior history
  inner_join(
    cdm$observation_period |>
      select(
        "subject_id" = "person_id",
        "start_obs" = "observation_period_start_date",
        "end_obs" = "observation_period_end_date"
      ),
    by = "subject_id"
  ) |>
  filter(start_obs + 180 <= cohort_start_date & cohort_start_date <= end_obs) |>
  # restrict to only first event
  group_by(cohort_definition_id, subject_id) |>
  filter(cohort_start_date == min(cohort_start_date)) |>
  ungroup()

vs

cdm$my_cohort |>
  # restrict to only first event
  group_by(cohort_definition_id, subject_id) |>
  filter(cohort_start_date == min(cohort_start_date)) |>
  ungroup() |>
  # require 180 days of prior history
  inner_join(
    cdm$observation_period |>
      select(
        "subject_id" = "person_id",
        "start_obs" = "observation_period_start_date",
        "end_obs" = "observation_period_end_date"
      ),
    by = "subject_id"
  ) |>
  filter(start_obs + 180 <= cohort_start_date & cohort_start_date <= end_obs)

Motivation: common operations

cdm$my_cohort |>
  # require 180 days of prior history
  inner_join(
    cdm$observation_period |>
      select(
        "subject_id" = "person_id",
        "start_obs" = "observation_period_start_date",
        "end_obs" = "observation_period_end_date"
      ),
    by = "subject_id"
  ) |>
  filter(start_obs + 180 <= cohort_start_date & cohort_start_date <= end_obs) |>
  # restrict to only first event
  group_by(cohort_definition_id, subject_id) |>
  filter(cohort_start_date == min(cohort_start_date)) |>
  ungroup()

to

cdm$my_cohort |>
  # require 180 days of prior history
  requirePriorObservation(minPriorObservation = 180) |>
  # restrict to only first event
  requireIsFirstEntry()

Motivation

  • Tidy way

  • Control order of operations

  • Record decisions and its impact in attrition

  • Flexibility

Introduction

  • CohortConstructor package is designed to support cohort building pipelines in R, using data mapped to the OMOP Common Data Model.
  • CohortConstructor v0.6.3 is available in CRAN.
  • Vignettes with further information can be found in the package website.

OMOP Cohorts in R

OMOP Cohorts in R

  • The <cohort_table> class is defined in the R package omopgenerics.

  • This is the class that CohortConstructor uses, as well as other OMOP analytical packages.

  • As defined in omopgenerics, a <cohort_table> must have at least the following 4 columns (without any missing values in them):

    • cohort_definition_id: Unique identifier for each cohort in the table.

    • subject_id: Unique patient identifier.

    • cohort_start_date: Date when the person enters the cohort.

    • cohort_end_date: Date when the person exits the cohort.

OMOP Cohorts in R

cdm$cohort
# Source:   table<results.test_cohort> [?? x 4]
# Database: DuckDB 1.5.0 [unknown@Linux 6.17.0-1008-azure:R 4.5.3//tmp/Rtmp57NUvA/file16751494f26c.duckdb]
   cohort_definition_id subject_id cohort_start_date cohort_end_date
                  <int>      <int> <date>            <date>
 1                    1        439 2009-04-06        2009-04-17
 2                    1        762 1994-10-09        1994-10-19
 3                    1       1964 2004-08-08        2004-08-16
 4                    1       3536 1996-06-23        1996-07-06
 5                    1       3579 2006-09-07        2006-09-17
 6                    1       3859 1974-02-13        1974-02-26
 7                    1       4106 1989-04-21        1989-05-03
 8                    1       4398 2017-08-11        2017-08-18
 9                    1       4488 1976-03-06        1976-03-18
10                    2        105 1975-03-28        1975-04-04
# ℹ more rows

OMOP Cohorts in R

Additionally, the <cohort_table> object has the following attributes:

  • Settings: Relate each cohort definition ID with a cohort name and other variables that define the cohort.
settings(cdm$cohort)
# A tibble: 2 × 4
  cohort_definition_id cohort_name       cdm_version vocabulary_version
                 <int> <chr>             <chr>       <chr>
1                    1 viral_pharyngitis 5.3         v5.0 18-JAN-19
2                    2 viral_sinusitis   5.3         v5.0 18-JAN-19

OMOP Cohorts in R

  • Attrition: Store information on each inclusion criteria applied and how many records and subjects were kept after.
attrition(cdm$cohort)
# A tibble: 8 × 7
  cohort_definition_id number_records number_subjects reason_id reason                excluded_records excluded_subjects
                 <int>          <int>           <int>     <int> <chr>                            <int>             <int>
1                    1          10217            2606         1 Initial qualifying e…                0                 0
2                    1          10217            2606         2 Record in observation                0                 0
3                    1          10217            2606         3 Not missing record d…                0                 0
4                    1          10217            2606         4 Merge overlapping re…                0                 0
5                    2          17268            2686         1 Initial qualifying e…                0                 0
6                    2          17268            2686         2 Record in observation                0                 0
7                    2          17268            2686         3 Not missing record d…                0                 0
8                    2          17268            2686         4 Merge overlapping re…                0                 0

OMOP Cohorts in R

  • Cohort count: Number of records and subjects for each cohort.
cohortCount(cdm$cohort)
# A tibble: 2 × 3
  cohort_definition_id number_records number_subjects
                 <int>          <int>           <int>
1                    1          10217            2606
2                    2          17268            2686

OMOP Cohorts in R

  • Cohort codelist: Codelists used to define entry events and inclusion criteria for each cohort.
attr(cdm$cohort, "cohort_codelist")
# Source:   table<results.test_cohort_codelist> [?? x 4]
# Database: DuckDB 1.5.0 [unknown@Linux 6.17.0-1008-azure:R 4.5.3//tmp/Rtmp57NUvA/file16751494f26c.duckdb]
  cohort_definition_id codelist_name     concept_id codelist_type
                 <int> <chr>                  <int> <chr>
1                    1 viral_pharyngitis    4112343 index event
2                    2 viral_sinusitis     40481087 index event

CohortConstructor pipeline

1) Create base cohorts

Cohorts defined using clinical concepts (e.g., asthma diagnoses) or demographics (e.g., females aged >18)

2) Inclusion criteria

Transform base cohorts to meet study-specific inclusion criteria.

3) Follow-up

Set follow-up for the cohort of interest (this can also be done at earlier stages).

Function Sets



Base cohorts Cohort construction based on clinical concepts or demographics.



Requirements and Filtering Demographic restrictions, event presence/absence conditions, and filtering specific records.



Update cohort entry and exit Adjusting entry and exit dates to align with study periods, observation windows, or key events.

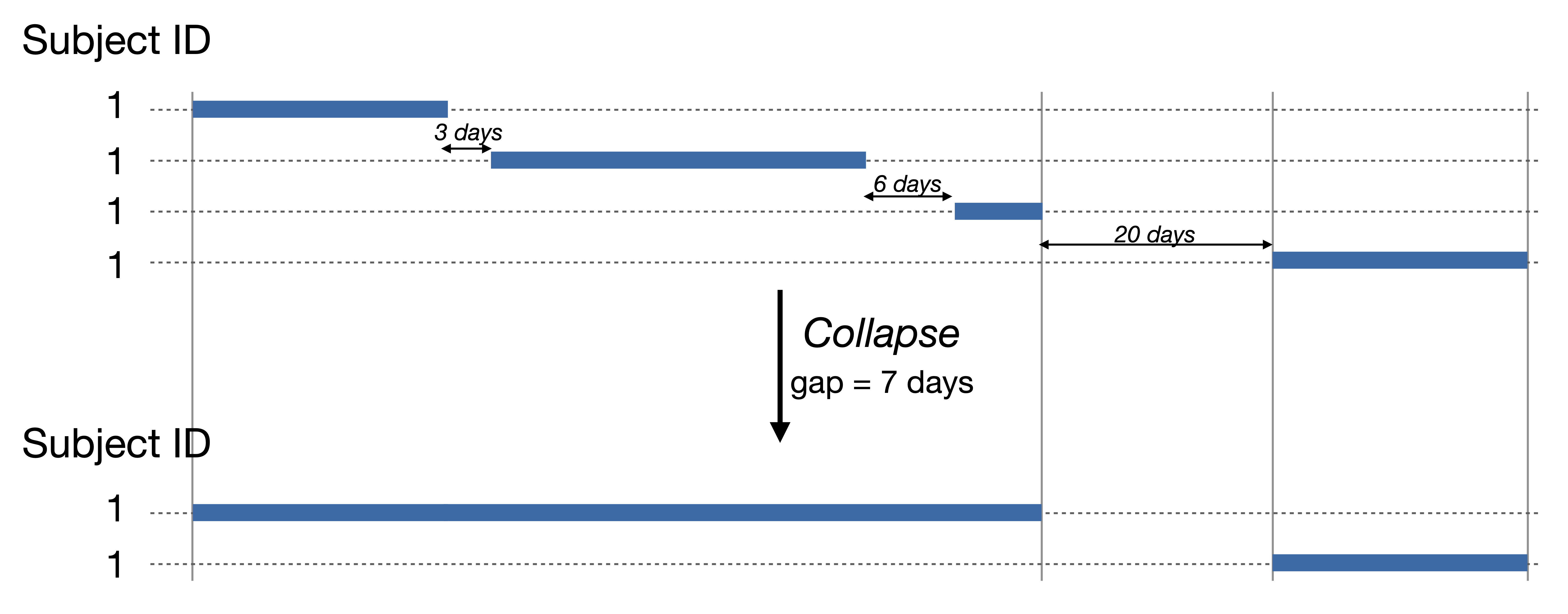

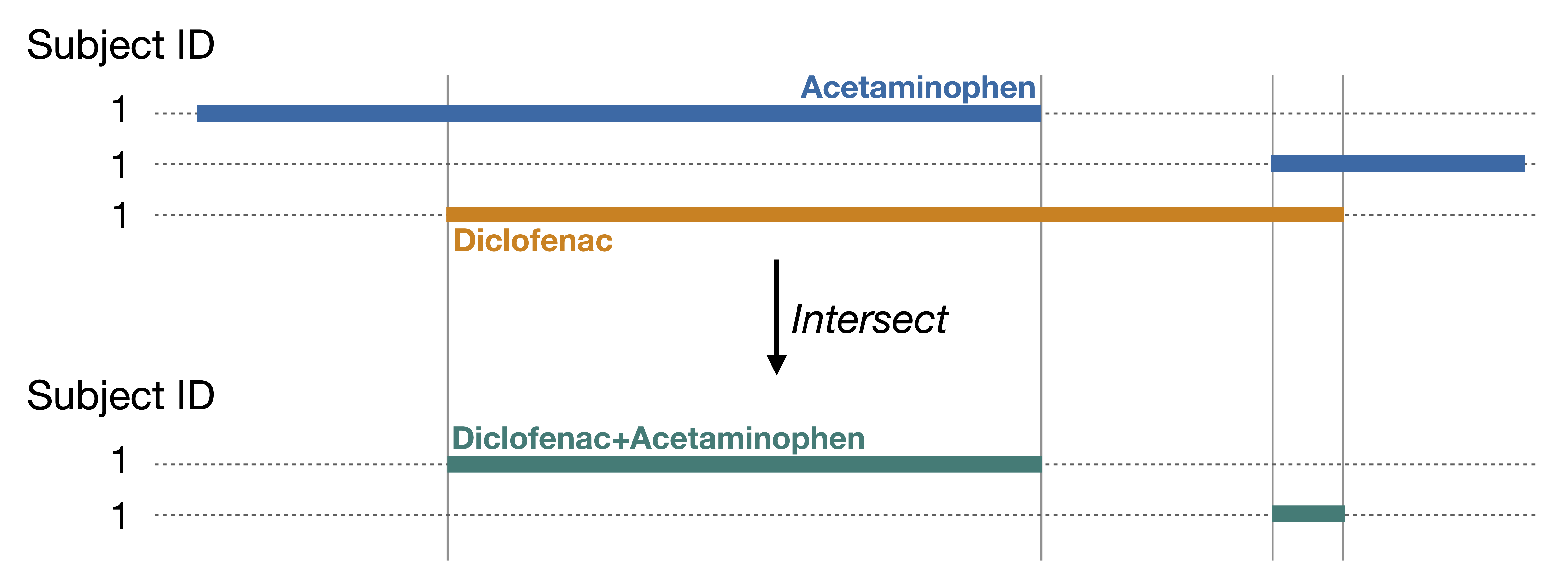

Transformation and Combination Merging, stratifying, collapsing, matching, or intersecting cohorts.

Base cohorts

Functions to build base cohorts

  • demographicsCohort()
  • conceptCohort()
  • measurementCohort()
  • deathCohort()

Create the cdm_reference object

# Load relevant packages
library(CDMConnector)
library(duckdb)
library(CohortConstructor)
library(CodelistGenerator)
library(CohortCharacteristics)
library(dplyr)
library(gt)
library(here)
library(PatientProfiles)

requireEunomia(datasetName = "delphi-100k", cdmVersion = "5.4")

Download completed!
con <- dbConnect(drv = duckdb(dbdir = eunomiaDir(datasetName = "delphi-100k", cdmVersion = "5.4")))
cdm <- cdmFromCon(
  con = con,
  cdmSchema = "main",
  writeSchema = "main"
)

Demographics based - Example

  • Two cohorts, females and males, both aged 18 to 60 years old, with at least 365 days of previous observation in the database.
cdm$age_cohort <- demographicsCohort(
  cdm = cdm,
  ageRange = c(18, 60),
  sex = c("Female", "Male"),
  minPriorObservation = 365,
  name = "age_cohort"
)

settings(x = cdm$age_cohort)
# A tibble: 2 × 5
  cohort_definition_id cohort_name    age_range sex    min_prior_observation
                 <int> <chr>          <chr>     <chr>                  <dbl>
1                    1 demographics_1 18_60     Female                   365
2                    2 demographics_2 18_60     Male                     365

Demographics based - Example

cohortCount(cohort = cdm$age_cohort)
# A tibble: 2 × 3
  cohort_definition_id number_records number_subjects
                 <int>          <int>           <int>
1                    1          23080           23080
2                    2          20872           20872
attrition(x = cdm$age_cohort)
# A tibble: 12 × 7
   cohort_definition_id number_records number_subjects reason_id reason               excluded_records excluded_subjects
                  <int>          <int>           <int>     <int> <chr>                           <int>             <int>
 1                    1          99523           99523         1 Initial qualifying …                0                 0
 2                    1          99523           99523         2 Non-missing sex                     0                 0
 3                    1          50046           50046         3 Sex requirement: Fe…            49477             49477
 4                    1          50046           50046         4 Non-missing year of…                0                 0
 5                    1          23090           23090         5 Age requirement: 18…            26956             26956
 6                    1          23080           23080         6 Prior observation r…               10                10
 7                    2          99523           99523         1 Initial qualifying …                0                 0
 8                    2          99523           99523         2 Non-missing sex                     0                 0
 9                    2          49477           49477         3 Sex requirement: Ma…            50046             50046
10                    2          49477           49477         4 Non-missing year of…                0                 0
11                    2          21145           21145         5 Age requirement: 18…            28332             28332
12                    2          20872           20872         6 Prior observation r…              273               273

Demographics based - Example

To better visualise the attrition, we can use the package CohortCharacteristics to create a formatted table:

result <- summariseCohortAttrition(cohort = cdm$age_cohort)

tableCohortAttrition(result = result)
Reason
Variable name
number_records number_subjects excluded_records excluded_subjects
Delphi-2M; demographics_1
Initial qualifying events 99,523 99,523 0 0
Non-missing sex 99,523 99,523 0 0
Sex requirement: Female 50,046 50,046 49,477 49,477
Non-missing year of birth 50,046 50,046 0 0
Age requirement: 18 to 60 23,090 23,090 26,956 26,956
Prior observation requirement: 365 days 23,080 23,080 10 10
Delphi-2M; demographics_2
Initial qualifying events 99,523 99,523 0 0
Non-missing sex 99,523 99,523 0 0
Sex requirement: Male 49,477 49,477 50,046 50,046
Non-missing year of birth 49,477 49,477 0 0
Age requirement: 18 to 60 21,145 21,145 28,332 28,332
Prior observation requirement: 365 days 20,872 20,872 273 273

Concept based - Example

Let’s create a cohort of medications that contains two drugs: diclofenac, and acetaminophen.

  1. Get relevant codelists with CodelistGenerator
drug_codes <- getDrugIngredientCodes(
  cdm = cdm,
  name = c("diclofenac", "acetaminophen"),
  nameStyle = "{concept_name}"
)
drug_codes

- acetaminophen (24846 codes)
- diclofenac (12663 codes)

Concept based - Example

  1. Create concept based cohorts
cdm$medications <- conceptCohort(
  cdm = cdm,
  conceptSet = drug_codes,
  name = "medications"
)

settings(x = cdm$medications)
# A tibble: 2 × 4
  cohort_definition_id cohort_name   cdm_version vocabulary_version
                 <int> <chr>         <chr>       <chr>
1                    1 acetaminophen 5.4         v5.0 27-AUG-25
2                    2 diclofenac    5.4         v5.0 27-AUG-25

Concept based - Example

  • Attrition
Reason
Variable name
number_records number_subjects excluded_records excluded_subjects
acetaminophen
Initial qualifying events 4,164 1,407 0 0
Record in observation 4,164 1,407 0 0
Not missing record date 4,164 1,407 0 0
Merge overlapping records 4,164 1,407 0 0
diclofenac
Initial qualifying events 121 64 0 0
Record in observation 121 64 0 0
Not missing record date 121 64 0 0
Merge overlapping records 121 64 0 0

Concept based - Example

  • Cohort codelist as an attribute
attr(cdm$medications, "cohort_codelist")
# Source:   table<medications_codelist> [?? x 4]
# Database: DuckDB 1.5.0 [unknown@Linux 6.17.0-1008-azure:R 4.5.3//tmp/Rtmp57NUvA/file1675ab70f00.duckdb]
   cohort_definition_id codelist_name concept_id codelist_type
                  <int> <chr>              <int> <chr>
 1                    1 acetaminophen     587290 index event
 2                    1 acetaminophen     587473 index event
 3                    1 acetaminophen     587705 index event
 4                    1 acetaminophen     587929 index event
 5                    1 acetaminophen     588401 index event
 6                    1 acetaminophen     588590 index event
 7                    1 acetaminophen     588717 index event
 8                    1 acetaminophen     589218 index event
 9                    1 acetaminophen     589245 index event
10                    1 acetaminophen     589441 index event
# ℹ more rows

Measurement based - Example

Let’s create a cohort of hypertension defined as two records of high pressure separated by less than a year. We will start identifying the measurement records that satisfy our criteria

  1. Get relevant codelists with CodelistGenerator
systBP <- getCandidateCodes(cdm = cdm, keywords = "Systolic blood pressure", domains = "measurement")
systBP
# A tibble: 145 × 6
   concept_id found_from          concept_name                                  domain_id vocabulary_id standard_concept
        <int> <chr>               <chr>                                         <chr>     <chr>         <chr>
 1     608615 From initial search NPEWS (National Paediatric Early Warning Sco… Measurem… SNOMED        S
 2     903107 From initial search Computed blood pressure systolic and diastol… Measurem… PPI           S
 3     903118 From initial search Computed systolic blood pressure, mean of 2n… Measurem… PPI           S
 4    1076804 From initial search Average ambulatory systolic blood pressure    Measurem… SNOMED        S
 5    1076806 From initial search Average ambulatory day interval systolic blo… Measurem… SNOMED        S
 6    1076808 From initial search Average ambulatory night interval systolic b… Measurem… SNOMED        S
 7    3000054 From initial search Umbilical artery Systolic blood pressure      Measurem… LOINC         S
 8    3000368 From initial search Left pulmonary artery Systolic blood pressure Measurem… LOINC         S
 9    3000605 From initial search Systolic blood pressure--expiration           Measurem… LOINC         S
10    3000653 From initial search Renal artery - right Systolic blood pressure  Measurem… LOINC         S
# ℹ 135 more rows
systBP <- list(syst_blood_presure = systBP$concept_id)

Measurement based - Example

  1. Create measurement based cohorts
cdm$hyp_sbp <- measurementCohort(
  cdm = cdm,
  conceptSet = systBP,
  name = "hyp_sbp",
  valueAsNumber = list("syst_blood_presure" = list("8876" = c(140, 9999)))
)

settings(x = cdm$hyp_sbp)
# A tibble: 1 × 5
  cohort_definition_id cohort_name        cdm_version vocabulary_version measurement_value_as_number
                 <int> <chr>              <chr>       <chr>              <chr>
1                    1 syst_blood_presure 5.4         v5.0 27-AUG-25     Concept ID 8876: 140 to 9999

Measurement based - Example

  • Attrition
Reason
Variable name
number_records number_subjects excluded_records excluded_subjects
syst_blood_presure
Initial qualifying events 88 71 0 0
Record in observation 88 71 0 0
Not missing record date 88 71 0 0
Drop duplicate records 88 71 0 0

Measurement based - Example

  • Cohort codelist as an attribute
attr(cdm$hyp_sbp, "cohort_codelist")
# Source:   table<hyp_sbp_codelist> [?? x 4]
# Database: DuckDB 1.5.0 [unknown@Linux 6.17.0-1008-azure:R 4.5.3//tmp/Rtmp57NUvA/file1675ab70f00.duckdb]
   cohort_definition_id codelist_name      concept_id codelist_type
                  <int> <chr>                   <int> <chr>
 1                    1 syst_blood_presure     608615 index event
 2                    1 syst_blood_presure     903107 index event
 3                    1 syst_blood_presure     903118 index event
 4                    1 syst_blood_presure    1076804 index event
 5                    1 syst_blood_presure    1076806 index event
 6                    1 syst_blood_presure    1076808 index event
 7                    1 syst_blood_presure    3000054 index event
 8                    1 syst_blood_presure    3000368 index event
 9                    1 syst_blood_presure    3000605 index event
10                    1 syst_blood_presure    3000653 index event
# ℹ more rows

Your turn!

Get Started: Create the cdm_reference object

# Load relevant packages
library(CDMConnector)
library(duckdb)
library(CohortConstructor)
library(CodelistGenerator)
library(CohortCharacteristics)
library(dplyr)
library(gt)
library(here)
library(PatientProfiles)

requireEunomia(datasetName = "delphi-100k", cdmVersion = "5.4")
con <- dbConnect(drv = duckdb(dbdir = eunomiaDir(datasetName = "delphi-100k", cdmVersion = "5.4")))
cdm <- cdmFromCon(
  con = con,
  cdmSchema = "main",
  writeSchema = "main"
)

Exercise 1 - Base cohorts

Create a cohort of aspirin use.

  • How many records does it have? And how many subjects?
CDM name Variable name Estimate name
Cohort name
aspirin
Delphi-2M Number records N 2,362
Number subjects N 978
💡 Click to see solution
aspirin <- getDrugIngredientCodes(
  cdm = cdm, name  = "aspirin", nameStyle = "{concept_name}"
)
cdm$aspirin <- conceptCohort(cdm = cdm, conceptSet = aspirin, name = "aspirin")
counts <- summariseCohortCount(cohort = cdm$aspirin)
tableCohortCount(result = counts)

Requirements and Filtering

Functions to apply requirements and filter

  • On demographics

    • requireDemographics()

    • requireAge()

    • requireSex()

    • requirePriorObservation()

    • requireFutureObservation()

  • On cohort entries

    • requireIsFirstEntry()

    • requireIsLastEntry()

    • requireIsEntry()

  • Require presence or absence based on other cohorts, concepts, and tables

    • requireCohortIntersect()

    • requireConceptIntersect()

    • requireTableIntersect()

  • Other

    • requireInDateRange()

    • requireMincohortCount(cohort = )

Requirement functions - Example

  • *require functions eliminate the records that do not** satisfy the inclusion criteria at indexDate.

  • We can apply different inclusion criteria using CohortConstructor’s functions in a pipe-line fashion. For instance, in what follows we require

    • only first record per person

    • subjects 18 years old or more at cohort start date

    • only females

    • at least 30 days of prior observation at cohort start date

cdm$medications_requirement <- cdm$medications |>
  requireIsFirstEntry(name = "medications_requirement") |>
  requireDemographics(
    ageRange = list(c(18, 150)),
    sex = "Female",
    minPriorObservation = 30
  )

Requirement functions - Example

Attrition Acetaminophen

Reason
Variable name
number_records number_subjects excluded_records excluded_subjects
acetaminophen
Initial qualifying events 4,164 1,407 0 0
Record in observation 4,164 1,407 0 0
Not missing record date 4,164 1,407 0 0
Merge overlapping records 4,164 1,407 0 0
Restricted to first entry 1,407 1,407 2,757 0
Age requirement: 18 to 150 618 618 789 789
Sex requirement: Female 120 120 498 498
Prior observation requirement: 30 days 120 120 0 0
Future observation requirement: 0 days 120 120 0 0

Requirement functions - Example

  • Now, we only want to keep those exposures coinciding with at least one healthcare visit on that same day:
cdm$medications_requirement <- cdm$medications_requirement |>
  requireTableIntersect(
    tableName = "visit_occurrence",
    window = c(0, 0),
    intersections = c(1, Inf)
  )

Requirement functions - Example

Attrition Acetaminophen

Reason
Variable name
number_records number_subjects excluded_records excluded_subjects
acetaminophen
Initial qualifying events 4,164 1,407 0 0
Record in observation 4,164 1,407 0 0
Not missing record date 4,164 1,407 0 0
Merge overlapping records 4,164 1,407 0 0
Restricted to first entry 1,407 1,407 2,757 0
Age requirement: 18 to 150 618 618 789 789
Sex requirement: Female 120 120 498 498
Prior observation requirement: 30 days 120 120 0 0
Future observation requirement: 0 days 120 120 0 0
In table visit_occurrence between 0 & 0 days relative to cohort_start_date between 1 and Inf 120 120 0 0

Your turn!

Exercise 2 - Requirement and filtering

Create a new cohort named “aspirin_last” by applying the following criteria to the base aspirin cohort:

  • Include only the last drug exposure for each subject.

  • Include exposures that start between January 1, 1960, and December 31, 1979.

  • Exclude individuals with an amoxicillin exposure in the 7 days prior to the aspirin exposure.

💡 Click to see solution
amoxicillin <- getDrugIngredientCodes(
  cdm = cdm, name  = "amoxicillin", nameStyle = "{concept_name}"
)
cdm$aspirin_last <- cdm$aspirin |>
  requireIsLastEntry(name = "aspirin_last") |>
  requireInDateRange(dateRange = as.Date(c("1960-01-01", "1979-12-31"))) |>
  requireConceptIntersect(
    conceptSet = amoxicillin,
    window = list(c(-7, 0)),
    intersections = 0
  )
result <- summariseCohortAttrition(cdm$aspirin_last)
tableCohortAttrition(result = result)

Move to the next slide to see the attrition.

Exercise 2 - Requirement and filtering

Reason
Variable name
number_records number_subjects excluded_records excluded_subjects
Delphi-2M; aspirin
Initial qualifying events 2,362 978 0 0
Record in observation 2,362 978 0 0
Not missing record date 2,362 978 0 0
Merge overlapping records 2,362 978 0 0
Restricted to last entry 978 978 1,384 0
cohort_start_date after 1960-01-01 978 978 0 0
cohort_start_date before 1979-12-31 0 0 978 978
Not in concept amoxicillin between -7 & 0 days relative to cohort_start_date 0 0 0 0

Update cohort entry and exit

Functions to update cohort start and end dates

  • Cohort exit

    • exitAtObservationEnd()

    • exitAtDeath()

    • exitAtFirstDate()

    • exitAtLastDate()

  • Cohort entry

    • entryAtFirstDate()

    • entryAtLastDate()

  • Trim start and end dates

    • trimDemographics()

    • trimToDateRange()

  • Pad start and end dates

    • padCohortDate()

    • padCohortEnd()

    • padCohortStart()

Update cohort entry and exit - Example

  • We can trim start and end dates to match demographic requirements.

  • For instance, cohort dates can be trimmed so the subject contributes time while:

    • Aged 20 to 40 years old

    • Prior observation of at least 365 days

cdm$medications_trimmed <- cdm$medications |>
  trimDemographics(
    ageRange = list(c(20, 40)),
    minPriorObservation = 365,
    name = "medications_trimmed"
  )

Update cohort entry and exit - Example

Reason
Variable name
number_records number_subjects excluded_records excluded_subjects
acetaminophen
Initial qualifying events 4,164 1,407 0 0
Record in observation 4,164 1,407 0 0
Not missing record date 4,164 1,407 0 0
Merge overlapping records 4,164 1,407 0 0
Non-missing year of birth 4,164 1,407 0 0
Age requirement: 20 to 40 1,405 479 2,759 928
Prior observation requirement: 365 days 1,405 479 0 0

Your turn!

Exercise 3 - Update cohort entry and exit

Create a cohort of ibuprofen. From it, create an “ibuprofen_death” cohort which includes only subjects that have a future record of death in the database, and update cohort end date to be the death date.

💡 Click to see solution
ibuprofen <- getDrugIngredientCodes(
  cdm = cdm, name  = "ibuprofen", nameStyle = "{concept_name}"
)
cdm$ibuprofen <- conceptCohort(
  cdm = cdm, conceptSet = ibuprofen, name = "ibuprofen"
)
cdm$ibuprofen_death <- cdm$ibuprofen |>
  exitAtDeath(requireDeath = TRUE, name = "ibuprofen_death")

result <- summariseCohortAttrition(cdm$ibuprofen_death)
tableCohortAttrition(result = result)

Move to the next slide to see the attrition.

Exercise 3 - Update cohort entry and exit

Reason
Variable name
number_records number_subjects excluded_records excluded_subjects
Delphi-2M; ibuprofen
Initial qualifying events 7,751 2,216 0 0
Record in observation 7,751 2,216 0 0
Not missing record date 7,751 2,216 0 0
Merge overlapping records 7,746 2,216 5 0
No death recorded 176 57 7,570 2,159
Exit at death 57 57 119 0

Transformation and Combination

Functions for Cohort Transformation and Combination

  • Split cohorts

    • yearCohorts()

    • stratifyCohorts()

  • Combine cohorts

    • unionCohorts()

    • intersectCohorts()

  • Filter cohorts

    • subsetCohorts()

    • sampleCohorts()

  • Match cohorts

    • matchCohorts()

  • Concatenate entries

    • collapseCohorts()

  • Copy and rename cohorts

    • renameCohort()

    • copyCohorts()

Cohort combinations - Example

  1. Collapse drug exposures that are within a gap of 7 days.

Cohort combinations - Example

cdm$medications_collapsed <- cdm$medications |>
  collapseCohorts(gap = 7, name = "medications_collapsed")
Reason
Variable name
number_records number_subjects excluded_records excluded_subjects
acetaminophen
Initial qualifying events 4,164 1,407 0 0
Record in observation 4,164 1,407 0 0
Not missing record date 4,164 1,407 0 0
Merge overlapping records 4,164 1,407 0 0
Collapse cohort with a gap of 7 days. 2,268 1,407 1,896 0

Cohort combinations - Example

  1. Create a new cohort that contains people who had an exposure to both diclofenac and acetaminophen at the same time using.

Cohort combinations - Example

cdm$intersection <- cdm$medications_collapsed |>
  intersectCohorts(name = "intersection")

settings(x = cdm$intersection)
# A tibble: 1 × 5
  cohort_definition_id cohort_name                gap acetaminophen diclofenac
                 <int> <chr>                    <dbl>         <dbl>      <dbl>
1                    1 acetaminophen_diclofenac     0             1          1

Your turn!

Exercise 4 - Transformation and Combination

From the ibuprofen base cohort (not subseted to death), create five separate cohorts. Each cohort should include records for one specific year from the following list: 1975, 1976, 1977, 1978, 1979, and 1980.

  • How many records and subjects are in each cohort?
💡 Click to see solution
cdm$ibuprofen_years <- cdm$ibuprofen |>
  yearCohorts(years = 1975:1980, name = "ibuprofen_years")
counts <- summariseCohortCount(cohort = cdm$ibuprofen_years)
tableCohortCount(result = counts)
CDM name Variable name Estimate name
Cohort name
ibuprofen_1975 ibuprofen_1976 ibuprofen_1977 ibuprofen_1978 ibuprofen_1979 ibuprofen_1980
Delphi-2M Number subjects N 0 0 0 0 0 0
Number records N 0 0 0 0 0 0

Complex cohort 1

  • We want to define a cohort of individuals taking acetaminophen and ibuprofen (prescriptions separated by 90 days or less are concatenated in a unique era of exposure) with at least 365 days of prior history, not taking opoiods on index date and censor individual if they start taking opioids.

Complex cohort 1

codelist <- getDrugIngredientCodes(
  cdm = cdm,
  name = c("acetaminophen", "ibuprofen"),
  nameStyle = "{concept_name}"
)
opioids <- getDrugIngredientCodes(
  cdm = cdm,
  name = c("morphine", "tramadol", "codeine"),
  nameStyle = "{concept_name}"
) |>
  unionCodelists()

cdm$drugs <- conceptCohort(
  cdm = cdm,
  conceptSet = codelist,
  name = "drugs",
  exit = "event_end_date"
) |>
  # collapse in 90 days eras
  collapseCohorts(gap = 90) |>
  # intersect both cohorts
  intersectCohorts() |>
  # min prior observation
  requirePriorObservation(minPriorObservation = 365) |>
  # require no opioids
  requireConceptIntersect(
    conceptSet = opioids,
    window = c(0, 0),
    intersections = 0
  ) |>
  # add start opioids date
  addConceptIntersectDate(
    conceptSet = opioids,
    window = c(1, Inf),
    order = "first",
    nameStyle = "start_opioids",
    name = "drugs"
  ) |>
  exitAtFirstDate(dateColumns = c("start_opioids", "cohort_end_date"))

cohortCount(cdm$drugs)
# A tibble: 1 × 3
  cohort_definition_id number_records number_subjects
                 <int>          <int>           <int>
1                    1              8               7

Complex cohort 2

  • Hypertension cohort defined as:

    • Two records of systolic blood pressure higher than 140 separated less than 365 days apart.

    • Two records of diastolic blood pressure higher than 90 separated less than 365 days apart.

    • Record of hypertension as a condition.

    • Follow individuals till end of observation

Complex cohort 2

# concept search
systBP <- getCandidateCodes(cdm = cdm, keywords = "Systolic blood pressure", domains = "measurement")
diaBP <- getCandidateCodes(cdm = cdm, keywords = "Diastolic blood pressure", domains = "measurement")
hyp <- getCandidateCodes(cdm = cdm, keywords = "hypertension", domains = "condition")

codelist <- list(
  syst_blood_presure = systBP$concept_id,
  dia_blood_presure = diaBP$concept_id,
  hyp = hyp$concept_id
)

# systolic cohort
cdm$syst_measurement <- measurementCohort(
  cdm = cdm,
  conceptSet = codelist["syst_blood_presure"],
  name = "syst_measurement",
  valueAsNumber = list("syst_blood_presure" = list("8876" = c(140, 9999)))
) |>
  # require prior record in 365 days before
  requireCohortIntersect(
    targetCohortTable = "syst_measurement",
    window = c(-365, -1),
    intersections = c(1, Inf)
  )

# diastolic cohort
cdm$dia_measurement <- measurementCohort(
  cdm = cdm,
  conceptSet = codelist["dia_blood_presure"],
  name = "dia_measurement",
  valueAsNumber = list("dia_blood_presure" = list("8876" = c(90, 9999)))
) |>
  # require prior record in 365 days before
  requireCohortIntersect(
    targetCohortTable = "dia_measurement",
    window = c(-365, -1),
    intersections = c(1, Inf)
  )

# condition cohort
cdm$hyp_condition <- conceptCohort(
  cdm = cdm,
  conceptSet = codelist["hyp"],
  name = "hyp_condition"
)

# bind all cohorts together
cdm <- bind(cdm$syst_measurement, cdm$dia_measurement, cdm$hyp_condition, name = "hypertension")

# end of observation
cdm$hypertension <- cdm$hypertension |>
  exitAtObservationEnd() |>
  # merge cohorts together
  unionCohorts()

cohortCount(cdm$hypertension)
# A tibble: 1 × 3
  cohort_definition_id number_records number_subjects
                 <int>          <int>           <int>
1                    1            743             743

[Optional] Exercise 5

Use CohortConstructor to create a cohort with the following criteria:

  • Users of diclofenac

  • Females aged 16 or older

  • With at least 365 days of continuous observation prior to exposure

  • Without prior exposure to amoxicillin

  • With cohort exit defined as first discontinuation of exposure. An exposure being define as recorded exposures within 7-days gap

Move to the next slide to see the attrition.

[Optional] Exercise 5

Move to the next slide to see the solution.

Reason
Variable name
number_records number_subjects excluded_records excluded_subjects
Delphi-2M; diclofenac
Initial qualifying events 121 64 0 0
Record in observation 121 64 0 0
Not missing record date 121 64 0 0
Merge overlapping records 121 64 0 0
Age requirement: 16 to 150 75 33 46 31
Sex requirement: Female 24 13 51 20
Prior observation requirement: 365 days 23 12 1 1
Future observation requirement: 0 days 23 12 0 0
Not in concept amoxicillin between -Inf & -1 days relative to cohort_start_date 23 12 0 0
Collapse cohort with a gap of 7 days. 20 12 3 0
Restricted to first entry 12 12 8 0

[Optional] Exercise 5

💡 Click to see solution
amoxicillin <- getDrugIngredientCodes(
  cdm = cdm,
  name  = c("amoxicillin"),
  nameStyle = "{concept_name}"
)
diclofenac <- getDrugIngredientCodes(
  cdm = cdm,
  name  = "diclofenac",
  nameStyle = "{concept_name}"
)
cdm$diclofenac <- conceptCohort(
  cdm = cdm,
  conceptSet = diclofenac,
  name = "diclofenac"
) |>
  requireDemographics(
    sex = "Female",
    ageRange = list(c(16, 150)),
    minPriorObservation = 365
  ) |>
  requireConceptIntersect(
    conceptSet = amoxicillin,
    window = list(c(-Inf, -1)),
    intersections = 0
  ) |>
  collapseCohorts(gap = 7) |>
  requireIsFirstEntry()

result <- summariseCohortAttrition(cdm$diclofenac)
tableCohortAttrition(result = result)

CohortConstructor
