Plot the Observed vs. expected incidence, by age and gender

Usage

plotDemographicSummary(
  plpResult,
  typeColumn = "evaluation",
  saveLocation = NULL,
  fileName = "roc.png"
)

Arguments

plpResult: A plp result object as generated using the runPlp function.
typeColumn: The name of the column specifying the evaluation type
saveLocation: Directory to save plot (if NULL plot is not saved)
fileName: Name of the file to save to plot, for example 'plot.png'. See the function ggsave in the ggplot2 package for supported file formats.

Value

A ggplot object. Use the ggsave function to save to file in a different format.

Details

Create a plot showing the Observed vs. expected incidence, by age and gender #'

Examples

# \donttest{
data("simulationProfile")
plpData <- simulatePlpData(simulationProfile, n = 1000, seed = 42)
#> Generating covariates
#> Generating cohorts
#> Generating outcomes
saveLoc <- file.path(tempdir(), "plotDemographicSummary")
plpResult <- runPlp(plpData, outcomeId = 3, saveDirectory = saveLoc)
#> Use timeStamp: TRUE
#> Creating save directory at: /tmp/RtmpBBYORx/plotDemographicSummary/2025-07-25-3
#> Currently in a tryCatch or withCallingHandlers block, so unable to add global calling handlers. ParallelLogger will not capture R messages, errors, and warnings, only explicit calls to ParallelLogger. (This message will not be shown again this R session)
#> Patient-Level Prediction Package version 6.4.1.9999
#> Study started at: 2025-07-25 10:04:36.665044
#> AnalysisID:         2025-07-25-3
#> AnalysisName:       Study details
#> TargetID:           1
#> OutcomeID:          3
#> Cohort size:        1000
#> Covariates:         98
#> Creating population
#> Outcome is 0 or 1
#> Population created with: 954 observations, 954 unique subjects and 434 outcomes
#> Population created in 0.0491 secs
#> seed: 123
#> Creating a 25% test and 75% train (into 3 folds) random stratified split by class
#> Data split into 238 test cases and 716 train cases (239, 239, 238)
#> Data split in 0.796 secs
#> Train Set:
#> Fold 1 239 patients with 109 outcomes - Fold 2 239 patients with 109 outcomes - Fold 3 238 patients with 108 outcomes
#> 66 covariates in train data
#> Test Set:
#> 238 patients with 108 outcomes
#> Removing 2 redundant covariates
#> Removing 0 infrequent covariates
#> Normalizing covariates
#> Tidying covariates took 1.16 secs
#> Train Set:
#> Fold 1 239 patients with 109 outcomes - Fold 2 239 patients with 109 outcomes - Fold 3 238 patients with 108 outcomes
#> 64 covariates in train data
#> Test Set:
#> 238 patients with 108 outcomes
#>
#> Running Cyclops
#> Done.
#> GLM fit status:  OK
#> Creating variable importance data frame
#> Prediction took 0.155 secs
#> Time to fit model: 0.311 secs
#> Removing infrequent and redundant covariates and normalizing
#> Removing infrequent and redundant covariates covariates and normalizing took 0.36 secs
#> Prediction took 0.156 secs
#> Prediction done in: 0.876 secs
#> Calculating Performance for Test
#> =============
#> AUC                 61.40
#> 95% lower AUC:      54.59
#> 95% upper AUC:      68.21
#> AUPRC:              57.58
#> Brier:              0.23
#> Eavg:               0.06
#> Calibration in large- Mean predicted risk 0.4497 : observed risk 0.4538
#> Calibration in large- Intercept 0.3069
#> Weak calibration intercept: 0.3069 - gradient:2.3474
#> Hosmer-Lemeshow calibration gradient: 2.41 intercept:         -0.69
#> Average Precision:  0.58
#> Calculating Performance for Train
#> =============
#> AUC                 59.21
#> 95% lower AUC:      55.21
#> 95% upper AUC:      63.20
#> AUPRC:              55.33
#> Brier:              0.24
#> Eavg:               0.03
#> Calibration in large- Mean predicted risk 0.4553 : observed risk 0.4553
#> Calibration in large- Intercept 0.0515
#> Weak calibration intercept: 0.0515 - gradient:1.2817
#> Hosmer-Lemeshow calibration gradient: 1.31 intercept:         -0.14
#> Average Precision:  0.55
#> Calculating Performance for CV
#> =============
#> AUC                 56.25
#> 95% lower AUC:      52.05
#> 95% upper AUC:      60.46
#> AUPRC:              52.52
#> Brier:              0.24
#> Eavg:               0.02
#> Calibration in large- Mean predicted risk 0.4558 : observed risk 0.4553
#> Calibration in large- Intercept 0.0403
#> Weak calibration intercept: 0.0403 - gradient:1.2344
#> Hosmer-Lemeshow calibration gradient: 1.19 intercept:         -0.09
#> Average Precision:  0.53
#> Time to calculate evaluation metrics: 0.216 secs
#> Calculating covariate summary @ 2025-07-25 10:04:40.367607
#> This can take a while...
#> Creating binary labels
#> Joining with strata
#> calculating subset of strata 1
#> calculating subset of strata 2
#> calculating subset of strata 3
#> calculating subset of strata 4
#> Restricting to subgroup
#> Calculating summary for subgroup TrainWithOutcome
#> Restricting to subgroup
#> Calculating summary for subgroup TrainWithNoOutcome
#> Restricting to subgroup
#> Calculating summary for subgroup TestWithOutcome
#> Restricting to subgroup
#> Calculating summary for subgroup TestWithNoOutcome
#> Aggregating with labels and strata
#> Finished covariate summary @ 2025-07-25 10:04:43.822783
#> Time to calculate covariate summary: 3.46 secs
#> Run finished successfully.
#> Saving PlpResult
#> Creating directory to save model
#> plpResult saved to ..\/tmp/RtmpBBYORx/plotDemographicSummary/2025-07-25-3\plpResult
#> runPlp time taken: 7.25 secs

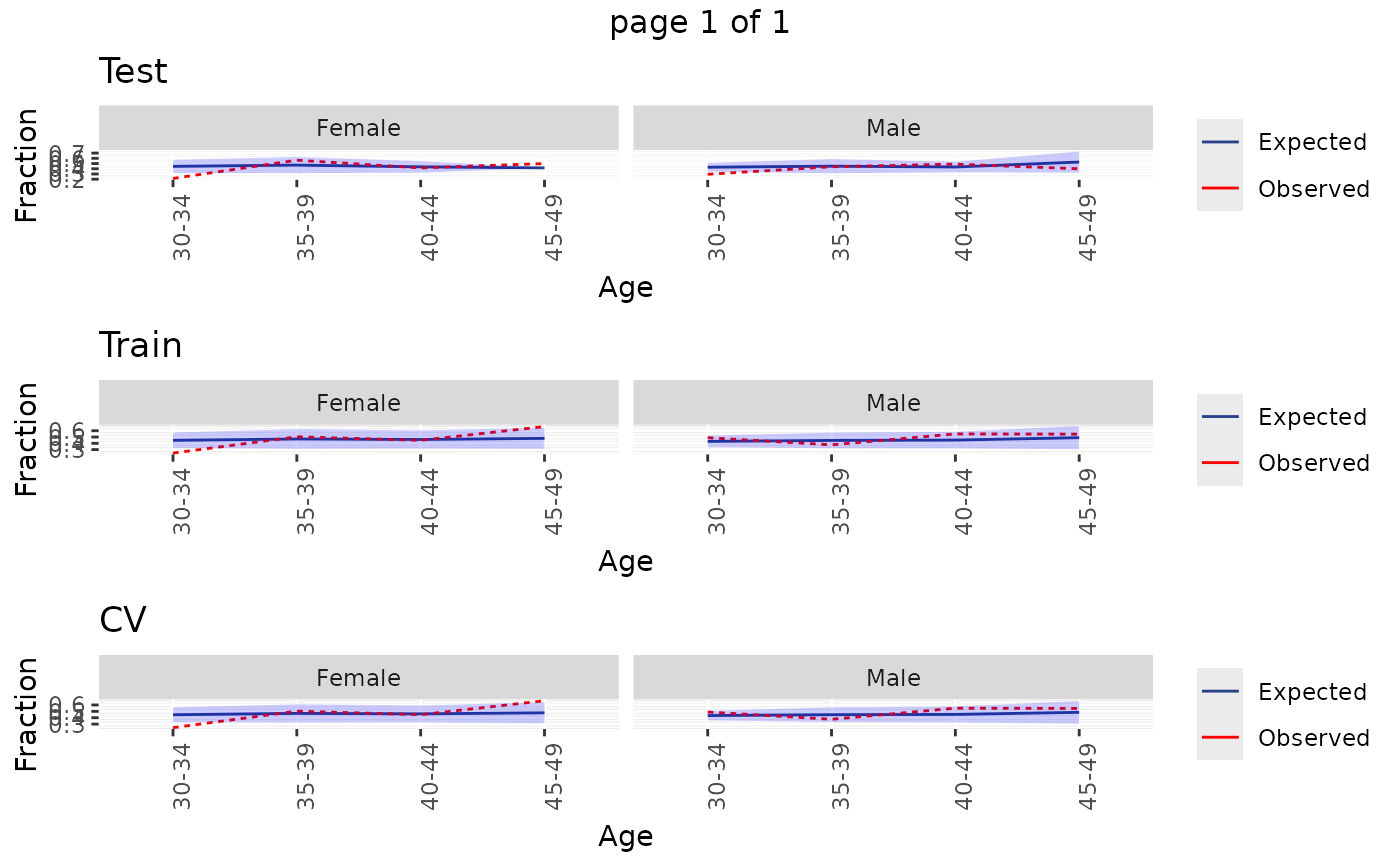

plotDemographicSummary(plpResult)

# clean up
unlink(saveLoc, recursive = TRUE)
# }
