PhenotypeR

Review codelists and cohorts in OMOP CDM

Introduction

  • PhenotypeR package can help us to assess the research-readiness of a set of cohorts we have defined.
  • The code is publicly available in OHDSI’s GitHub repository PhenoypeR.
  • PhenotypeR 0.4 is available in CRAN.
  • Vignettes with further information can be found in the package website.

Set of Functions: Individual Diagnostics Assessment

  • Database diagnostics

    • databaseDiagnostics()

  • Codelist diagnostics

    • codelistDiagnostics()

  • Cohort diagnostics

    • cohortDiagnostics()

  • Population diagnostics

    • populationDiagnostics()

Set of Functions: Phenotype Diagnostics

  • Comprises all the diagnostics that are being offered in this package.
result <- phenotypeDiagnostics(
  cohort,
  databaseDiagnostics = list(),
  codelistDiagnostics = list(),
  cohortDiagnostics = list(),
  populationDiagnostics = list()
)
  • Run only some of the diagnostics:
result <- phenotypeDiagnostics(
  cohort,
  databaseDiagnostics = NULL,
  codelistDiagnostics = list(),
  cohortDiagnostics = NULL,
  populationDiagnostics = list()
)

Database Diagnostics

  • Summarise the database metadata including:
    1. Snapshot
    2. Summary of the person table
    3. Summary of the observation period
    4. Summary of the clinical tables (i.e., condition_occurrence) where the concepts of the codelist defining your cohort are found.

Database Diagnostics

db_diagnostics <- databaseDiagnostics(
  cohort,
  cohortId = NULL,
  snapshot = TRUE,
  personTableSummary = TRUE,
  observationPeriodsSummary = TRUE,
  clinicalRecordsSummary = TRUE
)

# Modify databaseDiagnostics in phenotypeDiagnostics:
result <- phenotypeDiagnostics(
  cohort,
  databaseDiagnostics = list(
    "cohortId" = c(1,2),
    "snapshot" = FALSE
  )
)

Codelist Diagnostics

  • Summarise the codelist associated with your cohort including:
    1. Achilles codes use (only if ACHILLES tables are present)
    2. Orphan codes use (only if ACHILLES tables are present)
    3. Cohort code use
    4. Measurement code use (only if measurement concepts are present in your codelist)
    5. Drug diagnostics (only if drug concepts are present in your codelist)

Codelist Diagnostics

cl_diagnostics <- codelistDiagnostics(
  cohort,
  cohortId = NULL,
  achillesCodeUse = TRUE,
  orphanCodeUse = TRUE,
  cohortCodeUse = TRUE,
  drugDiagnostics = TRUE,
  measurementDiagnostics = TRUE,
  measurementDiagnosticsSample = 20000,
  drugDiagnosticsSample = 20000
)

# Modify codelistDiagnostics in phenotypeDiagnostics:
result <- phenotypeDiagnostics(
  cohort,
  codelistDiagnostics = list(
    "cohortId" = c(1,2),
    "achillesCodeUse" = FALSE
  )
)

Cohort Diagnostics

  • Summarise your cohort characteristics:
    1. Cohort count & attrition
    2. Cohort characteristics: Baseline characteristics of your cohort
    3. Large scale characteristics: Summary of the records from clinical tables within a time window
    4. Compare cohorts: Overlap and timing between cohorts (only if more than one cohort are present)
    5. Cohort survival: Survival until the event of death (if death table is present)

Cohort Diagnostics

c_diagnostics <- cohortDiagnostics(
  cohort,
  cohortId = NULL,
  cohortCount = TRUE,
  cohortCharacteristics = TRUE,
  largeScaleCharacteristics = TRUE,
  compareCohorts = TRUE,
  cohortSurvival = FALSE, # Notice that by default, cohortSurvival it's not run!!
  cohortSample = 20000,
  matchedSample = 1000
)

# Modify cohortDiagnostics in phenotypeDiagnostics:
result <- phenotypeDiagnostics(
  cohort,
  cohortDiagnostics = list(
    "cohortSample" = 1000
  )
)

Population Diagnostics

  • Contextualises the frequency of your study cohorts in the database calculating:
    1. Incidence
    2. Period Prevalence

Population Diagnostics

c_diagnostics <- populationDiagnostics(
  cohort,
  cohortId = NULL,
  incidence = TRUE,
  periodPrevalence = TRUE,
  populationSample = 1e+05,
  populationDateRange = as.Date(c(NA, NA))
)

# Modify populationDiagnostics in phenotypeDiagnostics:
result <- phenotypeDiagnostics(
  cohort,
  populationDiagnostics = list(
    "populationSample" = 10000
  )
)

Summary:

Database diagnostics

-   databaseDiagnostics()

Codelist diagnostics

-   codelistDiagnostics()

Cohort diagnostics

-   cohortDiagnostics()

Population diagnostics

-   populationDiagnostics()
  • Run all the diagnostics together:
result <- phenotypeDiagnostics(
  cohort,
  databaseDiagnostics = list(),
  codelistDiagnostics = list(),
  cohortDiagnostics = list(),
  populationDiagnostics = list(),
  stagingDirectory = NULL
)

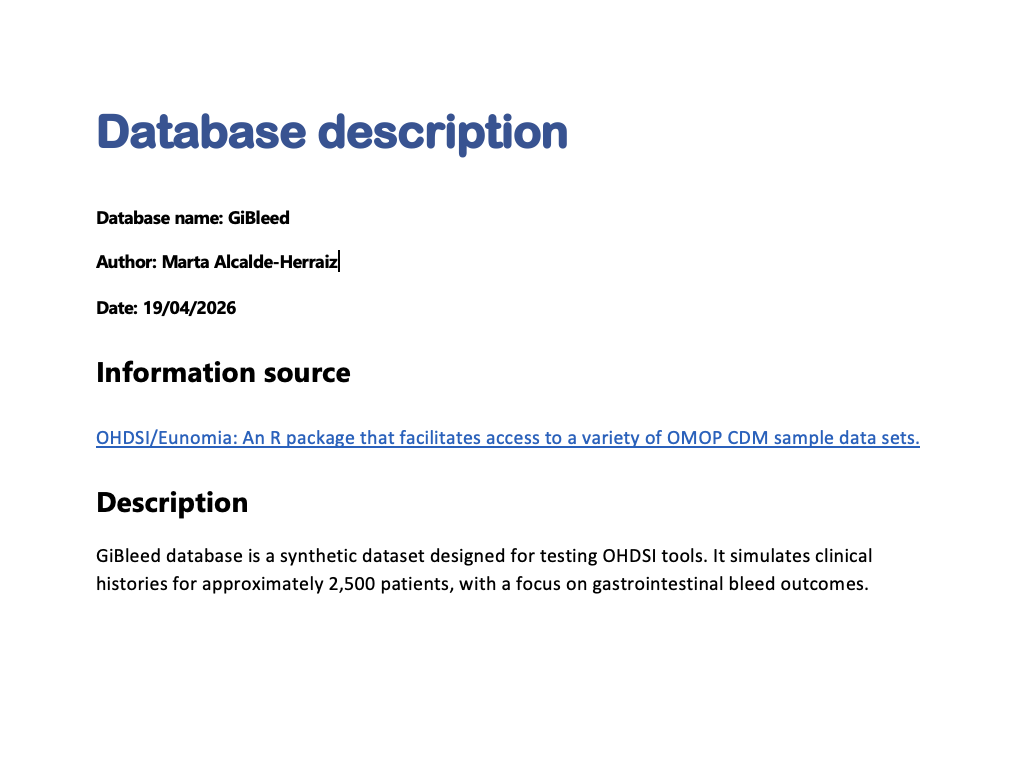

Extra: Create a database description manually!

downloadDatabaseDescriptionTemplate(
  directory = here(),
  name = "GiBleed") # Same name of your database!!!!

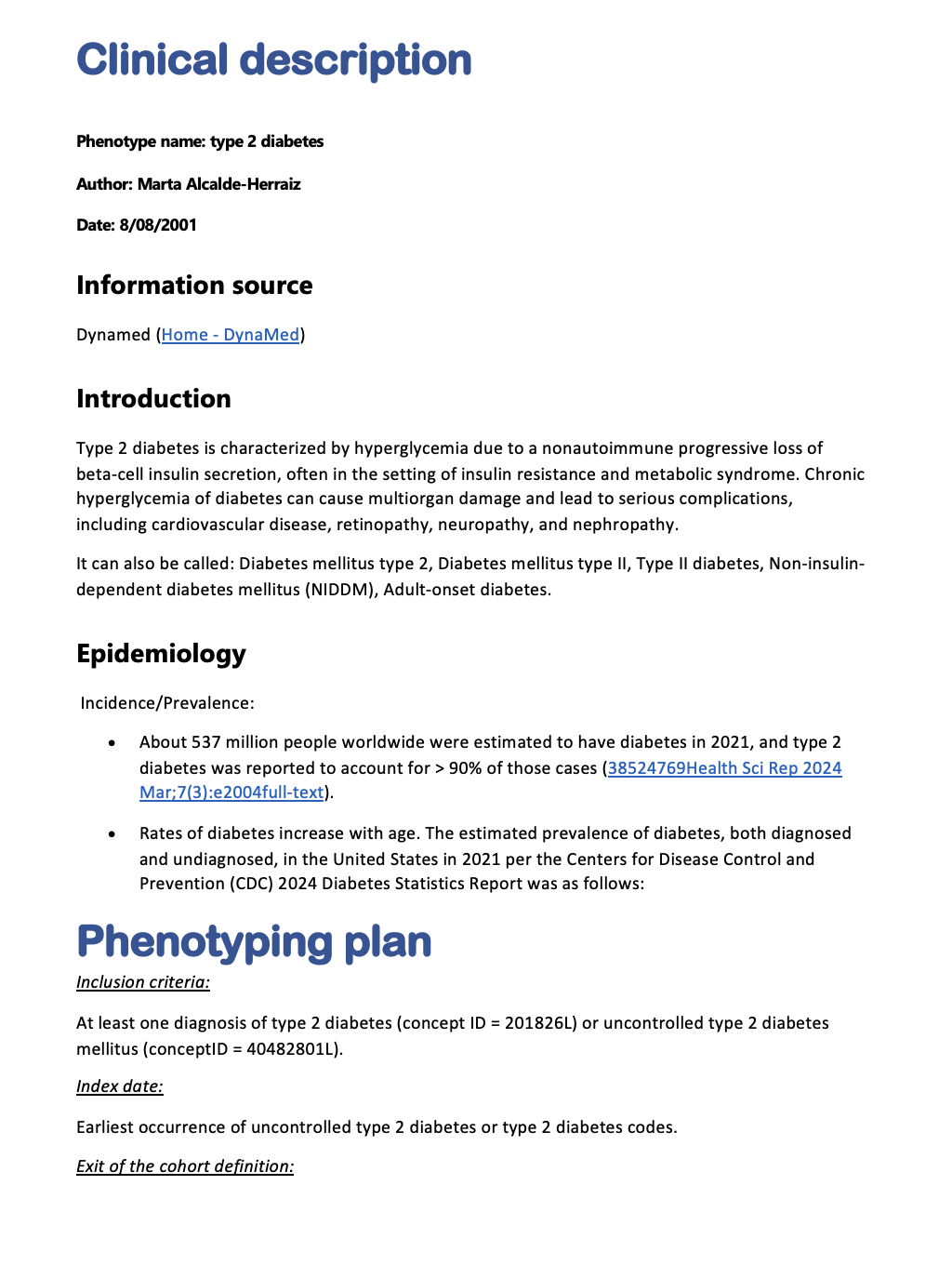

Extra: Create a clinical description manually!

downloadClinicalDescriptionTemplate(
  directory = here(),
  name = "type_2_diabetes") # Same name of your cohort!!!!

Extra: Create clinical expectations for your cohorts:

library(dplyr)
library(PhenotypeR)
exp <- tibble(
  "cohort_name" = "type_2_diabetes",
  "estimate" = c("Median age of incident cases",
                 " Survival at five years"),
  "value" = c("45 to 65",
              "85% to 95%"),
  "diagnostics" = c("cohort_characteristics",
                    "cohort_survival"),
  "source" = "Marta"
)
tableCohortExpectations(exp)

Final: Create a shiny app to visualise all the results!

  • Create a shiny app to visualize all the results
shinyDiagnostics(result = result,
                 directory = here(),
                 minCellCount = 5,
                 expectationsDir =  here("expectations"),
                 clinicalDescriptionsDir = here("clinical_descriptions"),
                 databaseDescriptionsDir = here("database_descriptions"),
                 removeEmptyTabs = FALSE)

See the results in the shiny app

Exercise - Run your PhenotypeR analysis and create your shiny app!

1. Load the packages

  • We will now run PhenotypeR for three cohorts of hypertension, warfarin users, and people with a measurement of prostate specific antigen level

  • Let’s start by loading the required packages and using https://ohdsi.github.io/omock/ package to create a mock CDM.

# Install all the packages:
install.packages(c("omock", "here", "OmopConstructor", "CohortConstructor",
                   "CohortSurvival", "omopgenerics", "readr", "duckdb", "PhenotypeR"))

# Load all the packages
library(omock)
library(here)
library(PhenotypeR)
library(OmopConstructor)
library(CohortConstructor)
library(CohortSurvival)
library(omopgenerics)
library(readr)

# Create mock CDM
cdm <- mockCdmFromDataset(datasetName = "synpuf-1k_5.3",
                          source = "duckdb")
cdm <- cdm |> buildAchillesTables()

2. Instantiate your cohorts

# Define code list for your cohort
codes <- list(
  "hypertension" = c(320128L),
  "users_of_warfarin" = c(1310149L, 40163554L),
  "measurement_of_prostate_specific_antigen_level" = c(2617206L)
)

# Instantiate your cohort
cdm[["study_cohorts"]] <- conceptCohort(cdm,
                                        conceptSet = codes,
                                        name = "study_cohorts")

3. Your turn! Create a database description for our database

To create a database description, follow the following instructions:

  1. Check your database name using cdmName(cdm)
  2. Download a template using downloadDatabaseDescriptionTemplate(). Remember that the docx files MUST have the same name as the database!!!

Help: You can check the arguments of the function using: ??downloadDatabaseDescriptionTemplate or in the PhenotypeR website

  1. Fill the template with the following information (you can copy paste):
Information source:
"OHDSI/Eunomia: An R package that facilitates access to a variety of OMOP CDM sample data sets."

Description:
"synput-1k_5.3 is a synthetic dataset designed for testing OHDSI tools. It is based on a subsample of Medicare claims data standardised to the OMOP Common Data Model (CDM) version 5.3.  It contains approximately records for 1k participants."

4. Your turn! Create clinical descriptions for this cohorts

To create clinical descriptions for the previous cohorts, follow the following instructions:

  1. Check the name of your cohorts using getCohortName(cdm)
  2. Download three templates for each of the cohorts using downloadClinicalDescriptionTemplate(). Remember that the docx files MUST have the same name as the cohorts!!!

Help: You can check the arguments of the function using: ??downloadClinicalDescriptionTemplate or in the PhenotypeR website

4. Your turn! Create clinical descriptions for this cohorts

  1. Fill the templates with the following information (you can copy paste):
# Hypertension
Information source:
"Dynamed (Home - DynaMed)"

Introduction:
"Hypertension is a sustained elevation of systemic arterial blood pressure, most commonly defined as a systolic blood pressure (BP) ≥ 140 mm Hg or diastolic BP ≥ 90 mm Hg, but definitions vary by professional organization and cardiovascular risk.
Other names include: primary hypertension, essential hypertension, idiopathic hypertension, sustained hypertension."

Complications:
"Hypertension is a risk factor for: Coronary artery disease (CAD), Heart failure, Chronic kidney disease, Stroke, Intracerebral hemorrhage, Transient ischemic attack (TIA), Peripheral artery disease (PAD), Aortic regurgitation, Atrial flutter, Mild cognitive impairment (MCI)."

Phenotyping plan:
"Inclusion criteria: At least one record of a diagnosis code for essential hypertension (ConceptId = 320128L).
Index date: Date of the first occurrence of the essential hypertension diagnosis code.
Exit criteria: As it is considered a chronic condition, once a patient enters the cohort they remain in it until the end of their observation period in the database."

4. Your turn! Create clinical descriptions for this cohorts

  1. Fill the templates with the following information (please copy paste):
# Warfarin users
Information source:
"Gemini (https://gemini.google.com/)"

Introduction:
"Warfarin is an oral anticoagulant that interferes with the hepatic synthesis of Vitamin K-dependent clotting factors (II, VII, IX, and X). It is primarily indicated for the prophylaxis and treatment of venous thrombosis, pulmonary embolism, and thromboembolic complications associated with atrial fibrillation (AFib) or cardiac valve replacement."

Phenotyping plan:
"Inclusion criteria: At least one record in the drug_exposure table of warfarin prescription. Multiple records per person are allowed.
Index date: Date of the recorded drug exposure.
Washout period: No washout period is used."

4. Your turn! Create clinical descriptions for this cohorts

  1. Fill the templates with the following information (please copy paste):
# Measurement of antigen specific cancer
Information source:
"Dynamed (https://www.dynamed.com/)"

Introduction:
"Measurement of prostate specific antigen in serum for the detection and management of benign prostatic hyperplasia and prostate cancer.
Other names include: PSA measurement, PSA - Prostate-specific antigen level, PSA - Serum prostate specific antigen level, tPSA measurement - Total prostate specific antigen measurement"

Phenotyping plan:
"Inclusion criteria: A record in the measurement table where the measurement_concept_id is 2617206L. Multiple records per person are allowed.
Index date:Measurement date of the recorded PSA test."

5. Get cohort expectations

Run the following bit of code to download mock expectations for your cohorts.

url <- "https://raw.githubusercontent.com/OHDSI/OHDSI-EU-2026-Workshop/main/PhenotypeR/expectations.csv"

expectationsDir <- "..." # Write here the directory where to save the expectations

download.file(url,
              destfile = here(expectationsDir, "expectations.csv"),
              mode = "wb")
  • Check that you’ve download the expectations properly by reading the csv file:
exp <- read_csv(expectationsDir)

tableCohortExpectations(exp)

6. Your turn! Run phenotypeDiagnostics

We’ll now run phenotypeDiagnostics() with the following specifications:

  • For databaseDiagnostics, use the default settings.
  • For codelistDiagnostics:
    • Set measurementDiagnosticsSample = 1000
    • Set drugDiagnosticsSample = 1000

6. Your turn! Run phenotypeDiagnostics

  • For cohortDiagnostics:
    • Run the default diagnostics AND cohortSurvival
    • Do not use any cohort sample
    • Use a matchedSample = 1000
  • For populationDiagnostics:
    • Use a populationSample = 10000

Do you want to check your answer? Go to the following slide!

6. Your turn! Run phenotypeDiagnostics

Are you 100% sure that you’re ready to see the answer?

6. Solution:

result <- phenotypeDiagnostics(cohort = cdm[["study_cohorts"]],
                               databaseDiagnostics = list(),
                               codelistDiagnostics = list(
                                 "measurementDiagnosticsSample" = 1000,
                                 "drugDiagnosticsSample" = 1000
                               ),
                               cohortDiagnostics = list(
                                 "cohortSurvival" = TRUE,
                                 "cohortSample" = NULL,
                                 "matchedSample" = 1000
                               ),
                               populationDiagnostics = list(
                                 "populationSample" = 10000
                               ))

7. Your turn! Run your shiny app!

Let us now create the shiny app using shinyDiagnostics()! To do that, complete the following spaces:

shinyDiagnostics(result,
                 directory = "...",
                 expectations = "...",
                 clinicalDescriptionsDir = "...",
                 databaseDescriptionsDir = "...",
                 minCellCount = 1,
                 open = TRUE
                 )

Help: You can check the arguments of the function using:

??shinyDiagnostics or in the PhenotypeR website

8. Your turn! Answer the following questions from the shiny app:

  • If you were not able to create the shiny app, you can find it here

  • Use the Shiny App to answer the following questions. The next slide lists questions from 1-20. After that, you’ll find the same questions again with hints to guide you. After that, you’ll find the answers!

8. Your turn! Answer the following questions from the shiny app:

  1. Check that database descriptions and clinical descriptions have been uploaded correctly
  2. When does the database observation period start and end?
  3. How many females and males are in the database?
  4. What is the average number of days during the first observation period?
  5. What is the average number of records per person in the drug_exposure table?

8. Your turn! Answer the following questions from the shiny app:

  1. According to ACHILLES tables, how many records of essential hypertension (concept ID = 320128) are in the database?
  2. Which is the orphan code for the cohort hypertension with less number of records in the database?
  3. How many people have the concept Prostate cancer screening; prostate specific antigen test (psa) (concept ID = 2617206) in our cohort measurement of prostate specific antigen level?
  4. For our cohort measurement of prostate specific antigen level, how many days are between measurements (in average)?
  5. How many records are excluded after merging overlapping records in the cohort hypertension?

8. Your turn! Answer the following questions from the shiny app:

  1. How many females are within the cohort hypertension?
  2. How many people get a prescription of lovastatin 10 MG Oral Tablet (concept ID = 19019115) after 30 days of having an hypertension diagnosis?
  3. Which condition shows the greatest SMD between the matched cohort and the sampled cohort within 1–30 days after warfarin initiation (users_of_warfarin cohort)?
  4. How many people are in both, hypertension and users of warfarin cohorts?
  5. What is the average number of days between people entering the hypertension cohort and then to the users of warfarin cohort?

8. Your turn! Answer the following questions from the shiny app:

  1. How many people die in the hypertension cohort? Check if it is aligned with the cohort expectations and explore the survival plot.
  2. What is the incidence of hypertension between 1/01/2009 to 31/12/2009 in our subsample of 10,000?
  3. What is the prevalence of hypertension between 1/01/2009 to 31/12/2009 in our subsample of 10,000?
  4. What is the prevalence of hypertension between 1/01/2009 to 31/12/2009 in our subsample of 10,000 only among Females?
  5. Save the prevalence plot as a png image.

8. Your turn! Answer the following questions from the shiny app (with HINTS)

  1. Check that database descriptions and clinical descriptions have been uploaded correctly

    • HINT: Go to Background tab. Notice that clinical_descriptions has an expandable menu on the left where you can choose to see the phenotyping plan

  2. When does the database observation period start and end?

    • HINT: Go to Database Diagnostics / Snapshot

  3. How many females and males are in the database?

    • HINT: Go to Database Diagnostics / Person table summary

  4. What is the average number of days during the first observation period?

    • HINT: Go to Database Diagnostics / Observation Periods and scroll down until you see the observation period cardinal number 1.

8. Your turn! Answer the following questions from the shiny app (with HINTS)

  1. What is the average number of records per person in the drug_exposure table?

    • HINT: Go to Database Diagnostics / Clinical tables and filter (using the expandable menu on the left) for the drug_exposure table

  2. According to ACHILLES tables, how many records of essential hypertension (concept ID = 320128) are in the database?

    • HINT: Go to Codelist Diagnostics / Achilles code use and expand the results for the cohort hypertension

  3. Which is the orphan code for the cohort hypertension with less number of records in the database?

    • HINT: Go to Codelist Diagnostics / Orphan codes and expand the results for the cohort hypertension. You can arrange the results tapping into the column synpuf-1k: Record count

8. Your turn! Answer the following questions from the shiny app (with HINTS)

  1. How many people have the concept Prostate cancer screening; prostate specific antigen test (psa) (concept ID = 2617206) in our cohort measurement of prostate specific antigen level?

    • HINT: Go to Codelist Diagnostics / Cohort code use, select the cohort measurement of prostate specific antigen level and expand its results.

  2. For our cohort measurement of prostate specific antigen level, how many days are between measurements (in average)?

    • HINT: Go to Codelist Diagnostics / Measurement diagnostics and select the cohort measurement of prostate specific antigen level

  3. How many records are excluded after merging overlapping records in the cohort hypertension?

    • HINT: Go to Cohort Diagnostics / Cohort count / Attrition and select the cohort hypertension

8. Your turn! Answer the following questions from the shiny app (with HINTS)

  1. How many females are within the cohort hypertension?

    • HINT: Go to Cohort Diagnostics / Cohort characteristics and select the cohort hypertension

  2. How many people get a prescription of lovastatin 10 MG Oral Tablet (concept ID = 19019115) after 30 days of having an hypertension diagnosis?

    • HINT: Go to Cohort Diagnostics / Large scale characteristics and select the cohort hypertension. Use the left expandable menu to select drug_exposure table and the window c(1,30)

8. Your turn! Answer the following questions from the shiny app (with HINTS)

  1. Which condition shows the greatest SMD between the matched cohort and the sampled cohort within 1–30 days after warfarin initiation (users_of_warfarin cohort)?

    • HINT: Go to Cohort Diagnostics / Compare Large scale characteristics and select the cohort users_of_warfarin sampled as reference cohort, and users_of_warfarin matched as a comparator cohort. Use the left expandable menu to select condition_occurrence table and the window c(1,30)

  2. How many people are in both, hypertension and users of warfarin cohorts?

    • HINT: Go to Cohort Diagnostics / Compare cohorts / Cohort Overlap and select the cohort hypertension

8. Your turn! Answer the following questions from the shiny app (with HINTS)

  1. What is the average number of days between people entering the hypertension cohort and then to the users of warfarin cohort?

    • HINT: Go to Cohort Diagnostics / Compare cohorts / Cohort Timing and select the cohort hypertension

  2. How many people die in the hypertension cohort? Check if it is aligned with the cohort expectations and explore the survival plot.

    • HINT: Go to Cohort Diagnostics / Cohort Survival and select the cohort hypertension. Explore the table and the plot!

  3. What is the incidence of hypertension between 1/01/2009 to 31/12/2009 in our subsample of 10,000?

    • HINT: Go to Population Diagnostics / Incidence and select the cohort hypertension

8. Your turn! Answer the following questions from the shiny app (with HINTS)

  1. What is the prevalence of hypertension between 1/01/2009 to 31/12/2009 in our subsample of 10,000?

    • HINT: Go to Population Diagnostics / Prevalence and select the cohort hypertension

  2. What is the prevalence of hypertension between 1/01/2009 to 31/12/2009 in our subsample of 10,000 only among Females?

    • HINT: Go to Population Diagnostics / Prevalence and select the cohort hypertension. Expand the menu on the left to select Female sex.

  3. Save the prevalence plot as a png image.

    • HINT: Go to Population Diagnostics / Prevalence and select the cohort hypertension. Select the small arrow pointing to a box on the top left of the figure.

8. Your turn! Answer the following questions from the shiny app (ANSWERS)

  1. Check that database descriptions and clinical descriptions have been uploaded correctly

  2. When does the database observation period start and end?

    • RE: Start is in 2008-01-01 and end in 2010-12-31

  3. How many females and males are in the database?

    • RE: Females 498 (49.80%) and males 502 (50.20%)

  4. What is the average number of days during the first observation period?

    • RE: Mean (SD) = 994.16 (257.95)

  5. What is the average number of records per person in the drug_exposure table?

    • RE: Mean (SD) = 56.75 (54.13)

8. Your turn! Answer the following questions from the shiny app (ANSWERS)

  1. According to ACHILLES tables, how many records of essential hypertension (concept ID = 320128) are in the database?

    • RE: 5,617

  2. Which is the orphan code for the cohort hypertension with less number of records in the database?

    • RE: Complications affecting other specified body systems, not elsewhere classified, hypertension, with 7 records.

  3. How many people have the concept Prostate cancer screening; prostate specific antigen test (psa) (concept ID = 2617206) in our cohort measurement of prostate specific antigen level?

    • RE: 124

8. Your turn! Answer the following questions from the shiny app (ANSWERS)

  1. For our cohort measurement of prostate specific antigen level, how many days are between measurements (in average)?

    • RE: Median [Q25 - Q75] = 226 [88 – 571]

  2. How many records are excluded after merging overlapping records in the cohort hypertension?

    • RE: 1,406

  3. How many females are within the cohort hypertension?

    • RE: N (%) = 2,145 (50.94%)

  4. How many people get a prescription of lovastatin 10 MG Oral Tablet (concept ID = 19019115) after 30 days of having an hypertension diagnosis?

    • RE: 19

8. Your turn! Answer the following questions from the shiny app (ANSWERS)

  1. Which condition shows the greatest SMD between the matched cohort and the sampled cohort within 1–30 days after warfarin initiation (users_of_warfarin cohort)?

    • RE: type 2 diabetes, with an SMD = 0.562

  2. How many people are in both, hypertension and users of warfarin cohorts?

    • RE: 52

  3. What is the average number of days between people entering the hypertension cohort and then to the users of warfarin cohort?

    • RE: 229

8. Your turn! Answer the following questions from the shiny app (ANSWERS)

  1. How many people die in the hypertension cohort? Check if it is aligned with the cohort expectations and explore the survival plot.

    • RE: 93. If we observe the plot, we can see that the maximum number of follow-up days are 1077 (equivalent to 2.95 years), and a survival probability of approximately 96%. The expectations say that the average survival after 5 years of the diagnosis is 85% to 95%.

  2. What is the incidence of hypertension between 1/01/2009 to 31/12/2009 in our subsample of 10,000?

    • RE: Incidence 100,000 person-years [95% CI] = 41,413.76 (34,550.51 - 49,241.10)

8. Your turn! Answer the following questions from the shiny app (ANSWERS)

  1. What is the prevalence of hypertension between 1/01/2009 to 31/12/2009 in our subsample of 10,000?

    • RE: Prevalence [95% CI] = 0.64 (0.60 - 0.67)

  2. What is the prevalence of hypertension between 1/01/2009 to 31/12/2009 in our subsample of 10,000 only among Females?

    • RE: Prevalence [95% CI] = 0.65 (0.61 - 0.69)

PhenotypeR
