Introduction

In this example we’re going to summarise cohort diagnostics results for cohorts of individuals with an ankle sprain, ankle fracture, forearm fracture, or a hip fracture using the Eunomia synthetic data.

Again, we’ll begin by creating our study cohorts.

library(CDMConnector)
library(CohortConstructor)
library(CodelistGenerator)
library(CohortCharacteristics)
library(CohortSurvival)
library(PhenotypeR)
library(dplyr)
library(ggplot2)

con <- DBI::dbConnect(duckdb::duckdb(),
                      CDMConnector::eunomiaDir("synpuf-1k", "5.3"))
cdm <- CDMConnector::cdmFromCon(con = con,
                                cdmName = "Eunomia Synpuf",
                                cdmSchema   = "main",
                                writeSchema = "main",
                                achillesSchema = "main")

cdm$injuries <- conceptCohort(cdm = cdm,
  conceptSet = list(
    "ankle_sprain" = 81151,
    "ankle_fracture" = 4059173,
    "forearm_fracture" = 4278672,
    "hip_fracture" = 4230399
  ),
  name = "injuries")

Cohort diagnostics

We can run cohort diagnostics analyses for each of our overall cohorts like so:

cohort_diag <- cohortDiagnostics(cdm$injuries,
                                 match = TRUE,
                                 matchedSample = NULL,
                                 survival = TRUE)

Cohort diagnostics builds on CohortCharacteristics and CohortSurvival R packages to perform the following analyses on our cohorts:

  • Cohort count: Summarises the number of records and persons in each one of the cohorts using summariseCohortCount().
  • Cohort attrition: Summarises the attrition associated with the cohorts using summariseCohortAttrition().
  • Cohort characteristics: Summarises cohort baseline characteristics using summariseCharacteristics(). Results are stratified by sex and by age group (0 to 17, 18 to 64, 65 to 150). Age groups cannot be modified.
  • Cohort large scale characteristics: Summarises cohort large scale characteristics using summariseLargeScaleCharacteristics(). Results are stratified by sex and by age group (0 to 17, 18 to 64, 65 to 150). Time windows (relative to cohort entry) included are: -Inf to -1, -Inf to -366, -365 to -31, -30 to -1, 0, 1 to 30, 31 to 365, 366 to Inf, and 1 to Inf. The analysis is perform at standard and source code level.

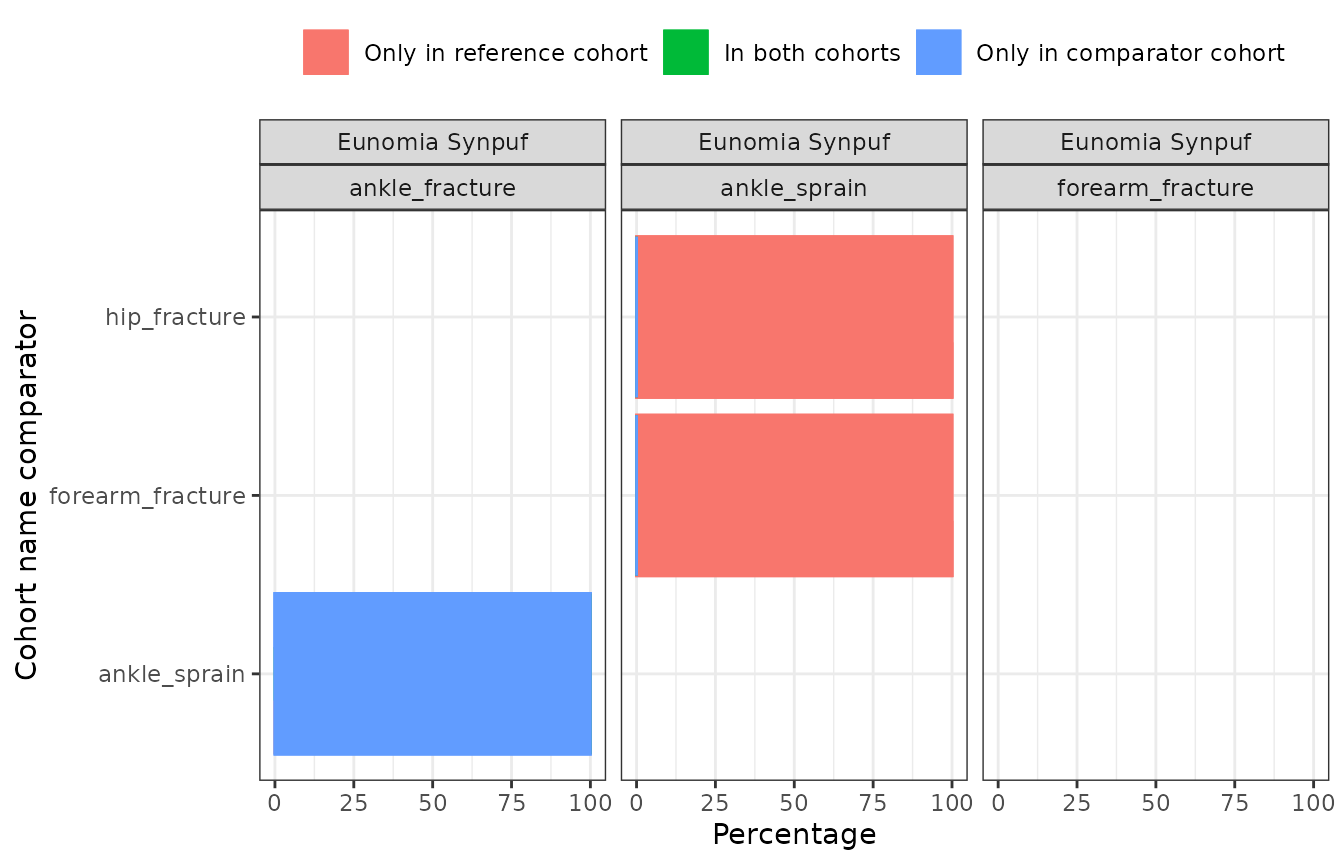

  • Cohort overlap: If there is more than one cohort in the cohort table supplied, summarises the overlap between them using summariseCohortOverlap().
  • Cohort timing: If there is more than one cohort in the cohort table supplied, summarises the timing between them using summariseCohortTiming().
  • Cohort survival: If survival = TRUE, summarises the survival until the event of death (if death table is present in the cdm) using
    estimateSingleEventSurvival().

If match = TRUE, the analyses cohort characteristics, cohort age distribution, cohort large scale characteristics, and cohort survival will also be performed in a matched cohort. The matched cohort will be created based on year of birth and sex (see matchCohorts() function in CohortConstructor package). This can help us to compare the results in our cohorts to those obtain in the matched cohort, representing the general population. Notice that by setting match = TRUE, the analysis will be performed in: (1) the original cohort, (2) individuals in the original cohorts that have a match (named the sampled cohort), and (3) the matched cohort.

As the matched process can be computationally expensive, specially when the cohorts are very big, we can reduce the matching analysis to a subset of participants from the original cohort using the matchedSample parameter.

The output of cohortDiagnostics() will be a summarised result table.

Visualise cohort diagnostics results

We will now use different functions to visualise the results generated by CohortDiagnostics. Notice that these functions are from CohortCharacteristics and CohortSurvival R packages packages. ### Cohort counts

tableCohortCount(cohort_diag)
CDM name Variable name Estimate name
Cohort name
ankle_fracture ankle_sprain forearm_fracture hip_fracture
Eunomia Synpuf Number records N 0 28 0 0
Number subjects N 0 27 0 0

Cohort attrition

Reason
Variable name
number_records number_subjects excluded_records excluded_subjects
Eunomia Synpuf; ankle_fracture
Initial qualifying events 0 0 0 0
Record start <= record end 0 0 0 0
Record in observation 0 0 0 0
Non-missing sex 0 0 0 0
Non-missing year of birth 0 0 0 0
Merge overlapping records 0 0 0 0
Eunomia Synpuf; ankle_sprain
Initial qualifying events 31 27 0 0
Record start <= record end 31 27 0 0
Record in observation 31 27 0 0
Non-missing sex 31 27 0 0
Non-missing year of birth 31 27 0 0
Merge overlapping records 28 27 3 0
Eunomia Synpuf; forearm_fracture
Initial qualifying events 0 0 0 0
Record start <= record end 0 0 0 0
Record in observation 0 0 0 0
Non-missing sex 0 0 0 0
Non-missing year of birth 0 0 0 0
Merge overlapping records 0 0 0 0
Eunomia Synpuf; hip_fracture
Initial qualifying events 0 0 0 0
Record start <= record end 0 0 0 0
Record in observation 0 0 0 0
Non-missing sex 0 0 0 0
Non-missing year of birth 0 0 0 0
Merge overlapping records 0 0 0 0
plotCohortAttrition(cohort_diag)

Cohort characteristics

CDM name
Eunomia Synpuf
Age group Sex Variable name Variable level Estimate name
Cohort name
ankle_fracture ankle_sprain forearm_fracture hip_fracture ankle_fracture_sampled ankle_fracture_matched ankle_sprain_sampled ankle_sprain_matched forearm_fracture_sampled forearm_fracture_matched hip_fracture_sampled hip_fracture_matched
overall overall Number records - N 0 28 0 0 0 0 27 27 0 0 0 0
Number subjects - N 0 27 0 0 0 0 26 27 0 0 0 0
Cohort start date - Median [Q25 - Q75] - 2009-04-23 [2008-10-30 - 2010-02-02] - - - - 2009-05-12 [2008-10-28 - 2010-02-18] 2009-05-12 [2008-10-28 - 2010-02-18] - - - -
Range - 2008-01-10 to 2010-09-13 - - - - 2008-01-10 to 2010-09-13 2008-01-10 to 2010-09-13 - - - -
Cohort end date - Median [Q25 - Q75] - 2009-04-24 [2008-10-30 - 2010-02-02] - - - - 2009-05-12 [2008-10-28 - 2010-02-18] 2010-12-31 [2010-12-31 - 2010-12-31] - - - -
Range - 2008-01-10 to 2010-09-13 - - - - 2008-01-10 to 2010-09-13 2009-10-01 to 2010-12-31 - - - -
Age - Median [Q25 - Q75] - 72 [66 - 77] - - - - 73 [66 - 78] 73 [66 - 78] - - - -
Mean (SD) - 71.14 (15.68) - - - - 72.19 (14.96) 72.26 (14.75) - - - -
Range - 27 to 98 - - - - 27 to 98 28 to 98 - - - -
Sex Female N (%) - 11 (39.29%) - - - - 10 (37.04%) 10 (37.04%) - - - -
Male N (%) - 17 (60.71%) - - - - 17 (62.96%) 17 (62.96%) - - - -
Prior observation - Median [Q25 - Q75] - 478 [303 - 762] - - - - 497 [302 - 779] 459 [292 - 779] - - - -
Mean (SD) - 499.54 (296.82) - - - - 503.81 (301.59) 476.70 (314.05) - - - -
Range - 9 to 986 - - - - 9 to 986 2 to 986 - - - -
Future observation - Median [Q25 - Q75] - 572 [280 - 768] - - - - 547 [278 - 775] 547 [282 - 760] - - - -
Mean (SD) - 575.89 (301.07) - - - - 570.89 (305.62) 556.30 (294.15) - - - -
Range - 109 to 1,086 - - - - 109 to 1,086 109 to 1,086 - - - -
Days in cohort - Median [Q25 - Q75] - 1 [1 - 1] - - - - 1 [1 - 1] 548 [282 - 760] - - - -
Mean (SD) - 1.11 (0.42) - - - - 1.11 (0.42) 557.30 (294.15) - - - -
Range - 1 to 3 - - - - 1 to 3 110 to 1,087 - - - -
Number visits prior year - Median [Q25 - Q75] - 31.00 [16.50 - 45.00] - - - - 28.00 [14.00 - 45.00] 17.00 [0.00 - 27.50] - - - -
Mean (SD) - 31.71 (20.36) - - - - 31.22 (20.57) 17.30 (17.89) - - - -
Range - 0.00 to 73.00 - - - - 0.00 to 73.00 0.00 to 62.00 - - - -
18 to 64 overall Number records - N - 5 - - - - 4 4 - - - -
Number subjects - N - 5 - - - - 4 4 - - - -
Cohort start date - Median [Q25 - Q75] - 2009-09-08 [2009-01-19 - 2010-05-24] - - - - 2010-01-15 [2009-04-15 - 2010-05-31] 2010-01-15 [2009-04-15 - 2010-05-31] - - - -
Range - 2008-02-03 to 2010-06-19 - - - - 2008-02-03 to 2010-06-19 2008-02-03 to 2010-06-19 - - - -
Cohort end date - Median [Q25 - Q75] - 2009-09-08 [2009-01-19 - 2010-05-24] - - - - 2010-01-15 [2009-04-15 - 2010-05-31] 2010-12-31 [2010-12-31 - 2010-12-31] - - - -
Range - 2008-02-03 to 2010-06-19 - - - - 2008-02-03 to 2010-06-19 2010-12-31 to 2010-12-31 - - - -
Age - Median [Q25 - Q75] - 44 [43 - 56] - - - - 50 [40 - 58] 50 [40 - 58] - - - -
Mean (SD) - 46.60 (13.79) - - - - 47.50 (15.76) 48.00 (15.66) - - - -
Range - 27 to 63 - - - - 27 to 63 28 to 64 - - - -
Sex Female N (%) - 2 (40.00%) - - - - 1 (25.00%) 1 (25.00%) - - - -
Male N (%) - 3 (60.00%) - - - - 3 (75.00%) 3 (75.00%) - - - -
Prior observation - Median [Q25 - Q75] - 616 [384 - 874] - - - - 745 [470 - 880] 745 [470 - 880] - - - -
Mean (SD) - 561.40 (362.64) - - - - 605.75 (402.78) 605.75 (402.78) - - - -
Range - 33 to 900 - - - - 33 to 900 33 to 900 - - - -
Future observation - Median [Q25 - Q75] - 479 [221 - 711] - - - - 350 [214 - 625] 350 [214 - 625] - - - -
Mean (SD) - 533.60 (362.64) - - - - 489.25 (402.78) 489.25 (402.78) - - - -
Range - 195 to 1,062 - - - - 195 to 1,062 195 to 1,062 - - - -
Days in cohort - Median [Q25 - Q75] - 1 [1 - 1] - - - - 1 [1 - 1] 351 [216 - 626] - - - -
Mean (SD) - 1.00 (0.00) - - - - 1.00 (0.00) 490.25 (402.78) - - - -
Range - 1 to 1 - - - - 1 to 1 196 to 1,063 - - - -
Number visits prior year - Median [Q25 - Q75] - 23.00 [5.00 - 26.00] - - - - 14.00 [4.25 - 23.75] 8.50 [0.00 - 25.75] - - - -
Mean (SD) - 20.20 (17.46) - - - - 14.00 (12.25) 17.25 (24.51) - - - -
Range - 2.00 to 45.00 - - - - 2.00 to 26.00 0.00 to 52.00 - - - -
65 to 150 overall Number records - N - 23 - - - - 23 23 - - - -
Number subjects - N - 22 - - - - 22 23 - - - -
Cohort start date - Median [Q25 - Q75] - 2009-04-04 [2008-10-28 - 2009-12-27] - - - - 2009-04-04 [2008-10-28 - 2009-12-27] 2009-04-04 [2008-10-28 - 2009-12-27] - - - -
Range - 2008-01-10 to 2010-09-13 - - - - 2008-01-10 to 2010-09-13 2008-01-10 to 2010-09-13 - - - -
Cohort end date - Median [Q25 - Q75] - 2009-04-05 [2008-10-28 - 2009-12-27] - - - - 2009-04-05 [2008-10-28 - 2009-12-27] 2010-12-31 [2010-12-31 - 2010-12-31] - - - -
Range - 2008-01-10 to 2010-09-13 - - - - 2008-01-10 to 2010-09-13 2009-10-01 to 2010-12-31 - - - -
Age - Median [Q25 - Q75] - 75 [68 - 81] - - - - 75 [68 - 81] 75 [68 - 81] - - - -
Mean (SD) - 76.48 (10.03) - - - - 76.48 (10.03) 76.48 (9.91) - - - -
Range - 66 to 98 - - - - 66 to 98 66 to 98 - - - -
Sex Female N (%) - 9 (39.13%) - - - - 9 (39.13%) 9 (39.13%) - - - -
Male N (%) - 14 (60.87%) - - - - 14 (60.87%) 14 (60.87%) - - - -
Prior observation - Median [Q25 - Q75] - 459 [302 - 726] - - - - 459 [302 - 726] 353 [292 - 720] - - - -
Mean (SD) - 486.09 (288.36) - - - - 486.09 (288.36) 454.26 (301.47) - - - -
Range - 9 to 986 - - - - 9 to 986 2 to 986 - - - -
Future observation - Median [Q25 - Q75] - 598 [316 - 775] - - - - 598 [316 - 775] 598 [308 - 760] - - - -
Mean (SD) - 585.09 (294.69) - - - - 585.09 (294.69) 567.96 (281.38) - - - -
Range - 109 to 1,086 - - - - 109 to 1,086 109 to 1,086 - - - -
Days in cohort - Median [Q25 - Q75] - 1 [1 - 1] - - - - 1 [1 - 1] 599 [310 - 760] - - - -
Mean (SD) - 1.13 (0.46) - - - - 1.13 (0.46) 568.96 (281.38) - - - -
Range - 1 to 3 - - - - 1 to 3 110 to 1,087 - - - -
Number visits prior year - Median [Q25 - Q75] - 40.00 [20.50 - 47.00] - - - - 40.00 [20.50 - 47.00] 17.00 [0.00 - 27.50] - - - -
Mean (SD) - 34.22 (20.41) - - - - 34.22 (20.41) 17.30 (17.21) - - - -
Range - 0.00 to 73.00 - - - - 0.00 to 73.00 0.00 to 62.00 - - - -
overall Female Number records - N - 11 - - - - 10 10 - - - -
Number subjects - N - 11 - - - - 10 10 - - - -
Cohort start date - Median [Q25 - Q75] - 2008-12-02 [2008-03-30 - 2009-04-11] - - - - 2008-11-13 [2008-03-29 - 2009-05-14] 2008-11-13 [2008-03-29 - 2009-05-14] - - - -
Range - 2008-01-10 to 2010-04-02 - - - - 2008-01-10 to 2010-04-02 2008-01-10 to 2010-04-02 - - - -
Cohort end date - Median [Q25 - Q75] - 2008-12-04 [2008-03-30 - 2009-04-11] - - - - 2008-11-14 [2008-03-29 - 2009-05-14] 2010-12-31 [2010-12-31 - 2010-12-31] - - - -
Range - 2008-01-10 to 2010-04-02 - - - - 2008-01-10 to 2010-04-02 2009-12-31 to 2010-12-31 - - - -
Age - Median [Q25 - Q75] - 70 [66 - 74] - - - - 70 [67 - 75] 70 [67 - 75] - - - -
Mean (SD) - 70.09 (12.28) - - - - 72.80 (8.82) 72.90 (8.70) - - - -
Range - 43 to 92 - - - - 63 to 92 64 to 92 - - - -
Sex Female N (%) - 11 (100.00%) - - - - 10 (100.00%) 10 (100.00%) - - - -
Prior observation - Median [Q25 - Q75] - 336 [88 - 466] - - - - 317 [88 - 499] 317 [88 - 499] - - - -
Mean (SD) - 342.91 (288.53) - - - - 338.80 (303.79) 338.80 (303.79) - - - -
Range - 9 to 822 - - - - 9 to 822 9 to 822 - - - -
Future observation - Median [Q25 - Q75] - 742 [415 - 1,006] - - - - 750 [349 - 1,007] 750 [570 - 954] - - - -
Mean (SD) - 702.27 (325.00) - - - - 701.40 (342.57) 719.70 (292.15) - - - -
Range - 249 to 1,086 - - - - 249 to 1,086 273 to 1,086 - - - -
Days in cohort - Median [Q25 - Q75] - 1 [1 - 1] - - - - 1 [1 - 1] 752 [572 - 956] - - - -
Mean (SD) - 1.18 (0.60) - - - - 1.20 (0.63) 720.70 (292.15) - - - -
Range - 1 to 3 - - - - 1 to 3 274 to 1,087 - - - -
Number visits prior year - Median [Q25 - Q75] - 28.00 [6.50 - 45.00] - - - - 23.50 [5.25 - 44.50] 13.50 [1.00 - 19.25] - - - -
Mean (SD) - 26.82 (20.58) - - - - 25.00 (20.74) 14.60 (15.76) - - - -
Range - 0.00 to 51.00 - - - - 0.00 to 51.00 0.00 to 50.00 - - - -
Male Number records - N - 17 - - - - 17 17 - - - -
Number subjects - N - 16 - - - - 16 17 - - - -
Cohort start date - Median [Q25 - Q75] - 2009-10-08 [2009-01-03 - 2010-04-17] - - - - 2009-10-08 [2009-01-03 - 2010-04-17] 2009-10-08 [2009-01-03 - 2010-04-17] - - - -
Range - 2008-03-21 to 2010-09-13 - - - - 2008-03-21 to 2010-09-13 2008-03-21 to 2010-09-13 - - - -
Cohort end date - Median [Q25 - Q75] - 2009-10-08 [2009-01-03 - 2010-04-17] - - - - 2009-10-08 [2009-01-03 - 2010-04-17] 2010-12-31 [2010-12-31 - 2010-12-31] - - - -
Range - 2008-03-21 to 2010-09-13 - - - - 2008-03-21 to 2010-09-13 2009-10-01 to 2010-12-31 - - - -
Age - Median [Q25 - Q75] - 75 [66 - 79] - - - - 75 [66 - 79] 75 [66 - 79] - - - -
Mean (SD) - 71.82 (17.88) - - - - 71.82 (17.88) 71.88 (17.63) - - - -
Range - 27 to 98 - - - - 27 to 98 28 to 98 - - - -
Sex Male N (%) - 17 (100.00%) - - - - 17 (100.00%) 17 (100.00%) - - - -
Prior observation - Median [Q25 - Q75] - 646 [368 - 837] - - - - 646 [368 - 837] 616 [335 - 837] - - - -
Mean (SD) - 600.88 (262.41) - - - - 600.88 (262.41) 557.82 (299.13) - - - -
Range - 80 to 986 - - - - 80 to 986 2 to 986 - - - -
Future observation - Median [Q25 - Q75] - 449 [258 - 727] - - - - 449 [258 - 727] 389 [258 - 636] - - - -
Mean (SD) - 494.12 (262.41) - - - - 494.12 (262.41) 460.18 (257.08) - - - -
Range - 109 to 1,015 - - - - 109 to 1,015 109 to 1,015 - - - -
Days in cohort - Median [Q25 - Q75] - 1 [1 - 1] - - - - 1 [1 - 1] 390 [259 - 637] - - - -
Mean (SD) - 1.06 (0.24) - - - - 1.06 (0.24) 461.18 (257.08) - - - -
Range - 1 to 2 - - - - 1 to 2 110 to 1,016 - - - -
Number visits prior year - Median [Q25 - Q75] - 34.00 [23.00 - 45.00] - - - - 34.00 [23.00 - 45.00] 17.00 [0.00 - 30.00] - - - -
Mean (SD) - 34.88 (20.18) - - - - 34.88 (20.18) 18.88 (19.31) - - - -
Range - 5.00 to 73.00 - - - - 5.00 to 73.00 0.00 to 62.00 - - - -

Cohort large scale characteristics
