Applying cohort table requirements • CohortConstructor

In this vignette we’ll show how requirements related to the data contained in the cohort table can be applied. For this we’ll use the Eunomia synthetic data.

library(omock)
library(CodelistGenerator)
library(CohortConstructor)
library(CohortCharacteristics)
library(ggplot2)
library(dplyr)

cdm <- mockCdmFromDataset(datasetName = "GiBleed", source = "duckdb")

Let’s start by creating a cohort of acetaminophen users. Individuals will have a cohort entry for each drug exposure record they have for acetaminophen with cohort exit based on their drug record end date. Note when creating the cohort, any overlapping records will be concatenated.

acetaminophen_codes <- getDrugIngredientCodes(cdm,
                                              name = "acetaminophen",
                                              nameStyle = "{concept_name}")
cdm$acetaminophen <- conceptCohort(cdm = cdm,
                                   conceptSet = acetaminophen_codes,
                                   exit = "event_end_date",
                                   name = "acetaminophen")

At this point we have just created our base cohort without having applied any restrictions. To visualise the current state of the cohort, we can use the summariseCohortAttrition() function to summarise attrition and then plot the results using plotCohortAttrition().

summary_attrition <- summariseCohortAttrition(cdm$acetaminophen)
plotCohortAttrition(summary_attrition)

Keep only the first record per person

We can see that in our starting cohort individuals have multiple entries for each use of acetaminophen. However, we could keep only their earliest cohort entry by using requireIsFirstEntry() from CohortConstructor.

cdm$acetaminophen <- cdm$acetaminophen |>
  requireIsFirstEntry()

summary_attrition <- summariseCohortAttrition(cdm$acetaminophen)
plotCohortAttrition(summary_attrition)

While the number of individuals remains unchanged, records after an individual’s first have been excluded.

Keep only the last record per person

If we want to require cohort entries to last a specific amount of time then we can use requireDuration(). Here for example we create an acetaminophen cohort and keep only those records that last for at least 30 days.

cdm$acetaminophen <- conceptCohort(cdm = cdm,
                                   conceptSet = acetaminophen_codes,
                                   exit = "event_end_date",
                                   name = "acetaminophen") |>
  requireDuration(c(30, Inf))

summary_attrition <- summariseCohortAttrition(cdm$acetaminophen)
plotCohortAttrition(summary_attrition)

Keep only a range of records per person

If we want to keep only a specific range of records per person, we can use the requireIsEntry() function. For example, o keep only the first two entries for each person, we can set entryRange = c(1, 2).

cdm$acetaminophen <- conceptCohort(cdm = cdm,
                                   conceptSet = acetaminophen_codes,
                                   exit = "event_end_date",
                                   name = "acetaminophen")
cdm$acetaminophen <- cdm$acetaminophen |>
  requireIsEntry(entryRange = c(1,2))

summary_attrition <- summariseCohortAttrition(cdm$acetaminophen)
plotCohortAttrition(summary_attrition)

Keep only records within a date range

Individuals may contribute multiple records over extended periods. We can filter out records that fall outside a specified date range using the requireInDateRange function.

cdm$acetaminophen <- conceptCohort(cdm = cdm,
                                 conceptSet = acetaminophen_codes,
                                 name = "acetaminophen")

cdm$acetaminophen <- cdm$acetaminophen |>
  requireInDateRange(dateRange = as.Date(c("2010-01-01", "2015-01-01")))

summary_attrition <- summariseCohortAttrition(cdm$acetaminophen)
plotCohortAttrition(summary_attrition)

Keep only if entry lasts a given duration

Let’s create an acetaminophen cohort again.

cdm$acetaminophen <- conceptCohort(cdm = cdm,
                                 conceptSet = acetaminophen_codes,
                                 name = "acetaminophen")

If people on start and stop on the same day they will be considered to be in the cohort for one day. So to require them to have been in the cohort until at least the day after cohort start we can use the requireDuration function. Here we’ll create a new cohort table and then bind our original and new cohorts so that we can see the impact of this requirement.

cdm$acetaminophen_one_night <- cdm$acetaminophen |>
  requireDuration(c(2, Inf),
                  name = "acetaminophen_one_night") |>
  renameCohort("acetaminophen_one_night")

cdm <- bind(cdm$acetaminophen,
            cdm$acetaminophen_one_night,
            name = "both_cohorts")

Now when summarising days in cohort we can see the difference this makes.

summary_attrition <- summariseCohortAttrition(cdm$both_cohorts)
plotCohortAttrition(summary_attrition)

summary_characteristics <- summariseCharacteristics(cdm$both_cohorts)
tableCharacteristics(summary_characteristics |>
                       filter(variable_name %in% c("Number subjects", "Days in cohort")))

			CDM name
			GiBleed
Variable name	Variable level	Estimate name	Cohort name
Variable name	Variable level	Estimate name	acetaminophen	acetaminophen_one_night
Number subjects	-	N	2,679	2,678
Days in cohort	-	Median [Q25 - Q75]	15 [8 - 15]	15 [8 - 15]
		Mean (SD)	17.99 (16.17)	18.55 (16.13)
		Range	1 to 101	2 to 101

Applying multiple cohort requirements

Multiple restrictions can be applied to a cohort, however it is important to note that the order that requirements are applied will often matter.

cdm$acetaminophen_1 <- conceptCohort(cdm = cdm,
                                 conceptSet = acetaminophen_codes,
                                 name = "acetaminophen_1") |>
  requireIsFirstEntry() |>
  requireInDateRange(dateRange = as.Date(c("2010-01-01", "2016-01-01"))) |>
  renameCohort("entry_before_date")

cdm$acetaminophen_2 <- conceptCohort(cdm = cdm,
                                 conceptSet = acetaminophen_codes,
                                 name = "acetaminophen_2") |>
  requireInDateRange(dateRange = as.Date(c("2010-01-01", "2016-01-01"))) |>
  requireIsFirstEntry("date_before_entry")

cdm <- bind(cdm$acetaminophen_1,
            cdm$acetaminophen_2,
            name = "both_cohorts")
summary_attrition <- summariseCohortAttrition(cdm$both_cohorts)

If we apply our entry requirement before our date requirement then we have a cohort of people with their first ever record of acetaminophen which occurs in our study period. But if we apply our date requirement before our entry requirement we have a cohort of people with their first record of acetaminophen in the study period, but this will not necessarily be their first record ever.

plotCohortAttrition(summary_attrition)

Keep only records from cohorts with a minimum number of individuals

Another useful functionality, particularly when working with multiple cohorts or performing a network study, is provided by requireMinCohortCount. Here we will only keep cohorts with a minimum count, filtering out records from cohorts with fewer than this number.

As an example let’s create a cohort for every drug ingredient we see in Eunomia. We can first get the drug ingredient codes.

medication_codes <- getDrugIngredientCodes(cdm = cdm, nameStyle = "{concept_name}")
medication_codes
#>
#> - acetaminophen (7 codes)
#> - albuterol (2 codes)
#> - alendronate (2 codes)
#> - alfentanil (1 codes)
#> - alteplase (2 codes)
#> - amiodarone (2 codes)
#> along with 85 more codelists

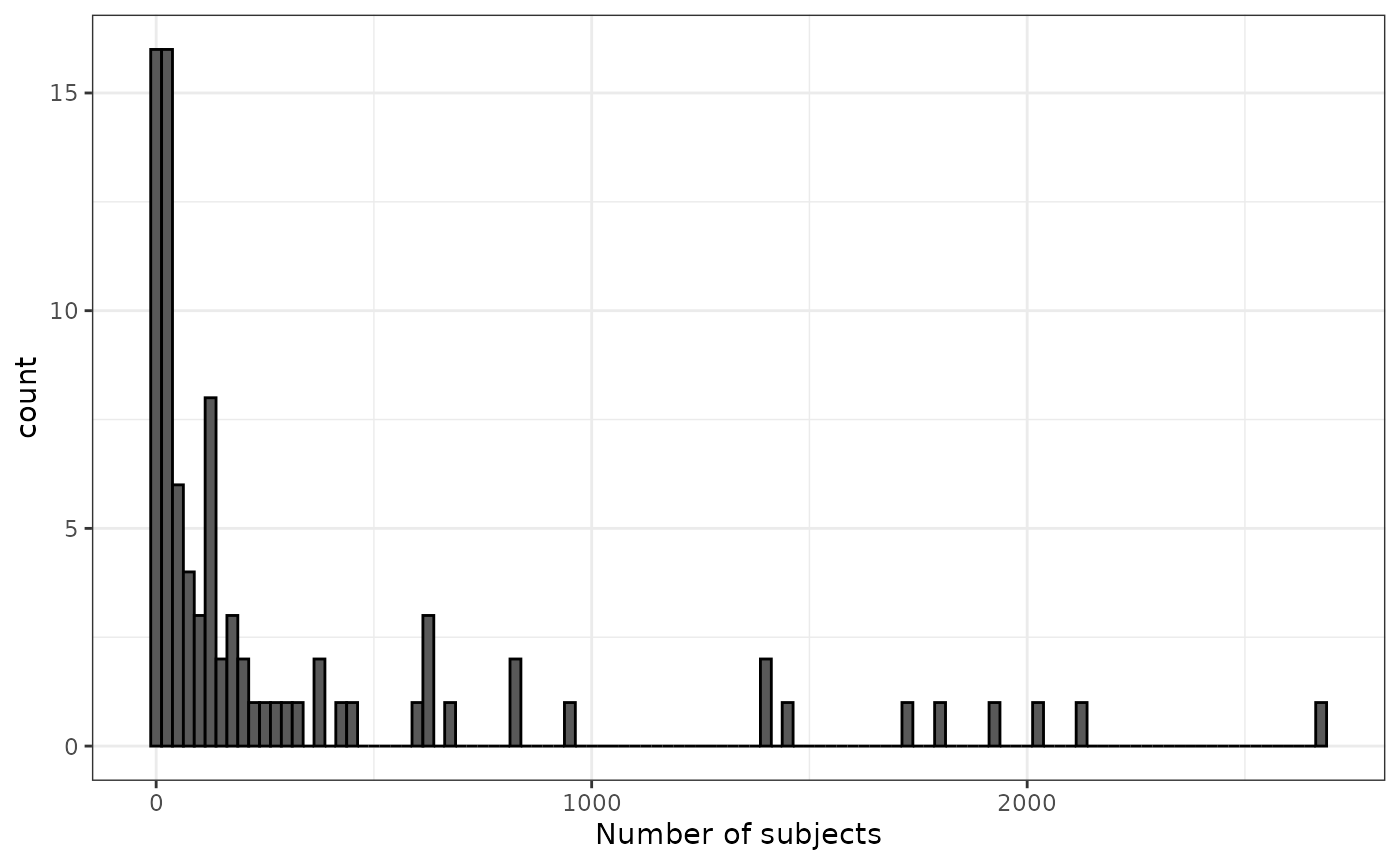

We can see that when we make all these cohorts many have only a small number of individuals.

cdm$medications <- conceptCohort(cdm = cdm,
                                 conceptSet = medication_codes,
                                 name = "medications")


cohortCount(cdm$medications) |>
  filter(number_subjects > 0) |>
  ggplot() +
  geom_histogram(aes(number_subjects),
                 colour = "black",
                 binwidth = 25) +
  xlab("Number of subjects") +
  theme_bw()

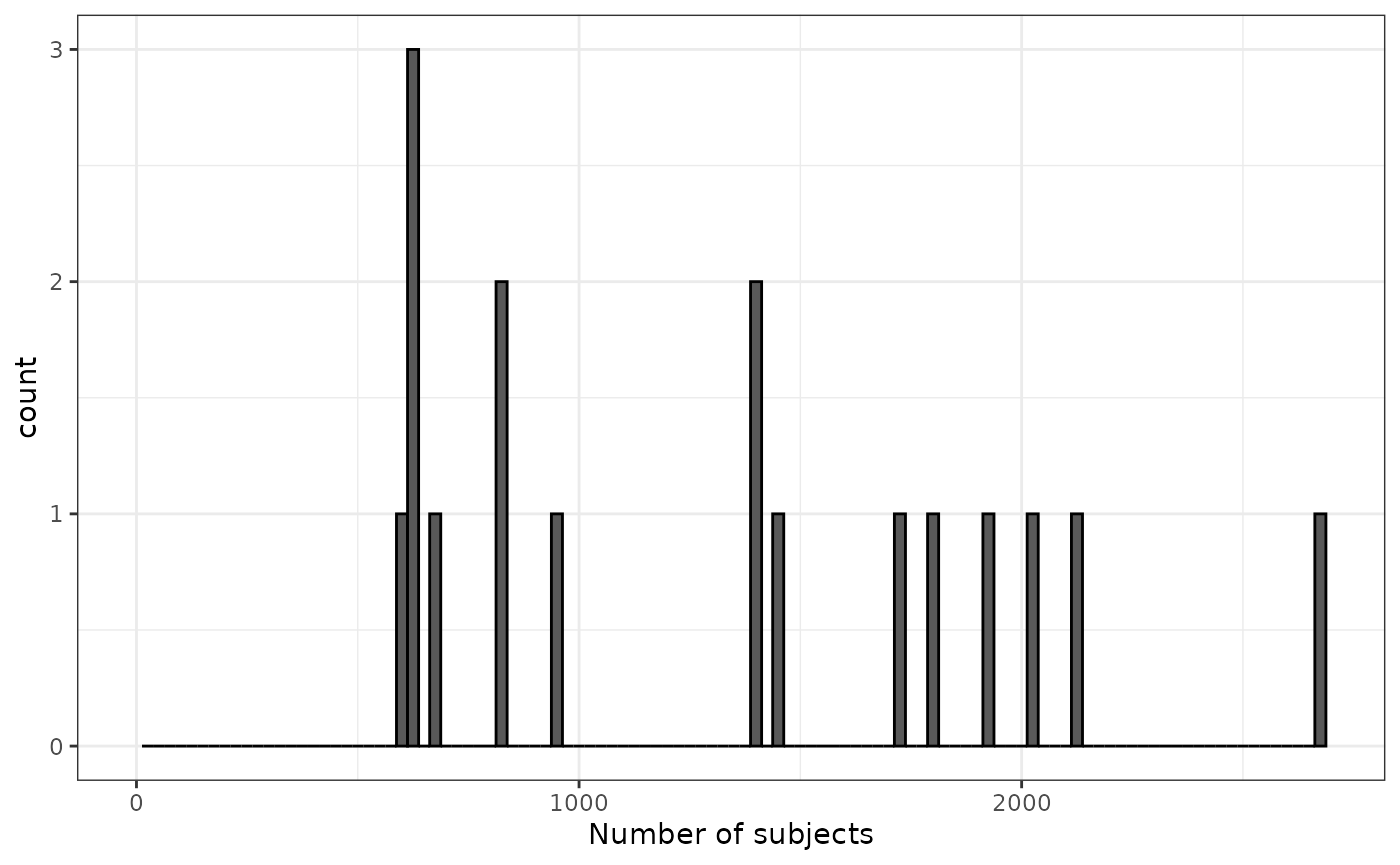

If we apply a minimum cohort count of 500, we end up with far fewer cohorts that all have a sufficient number of study participants.

cdm$medications <- cdm$medications |>
  requireMinCohortCount(minCohortCount = 500)

cohortCount(cdm$medications) |>
  filter(number_subjects > 0) |>
  ggplot() +
  geom_histogram(aes(number_subjects),
                 colour = "black",
                 binwidth = 25) +
  xlim(0, NA) +
  xlab("Number of subjects") +
  theme_bw()
